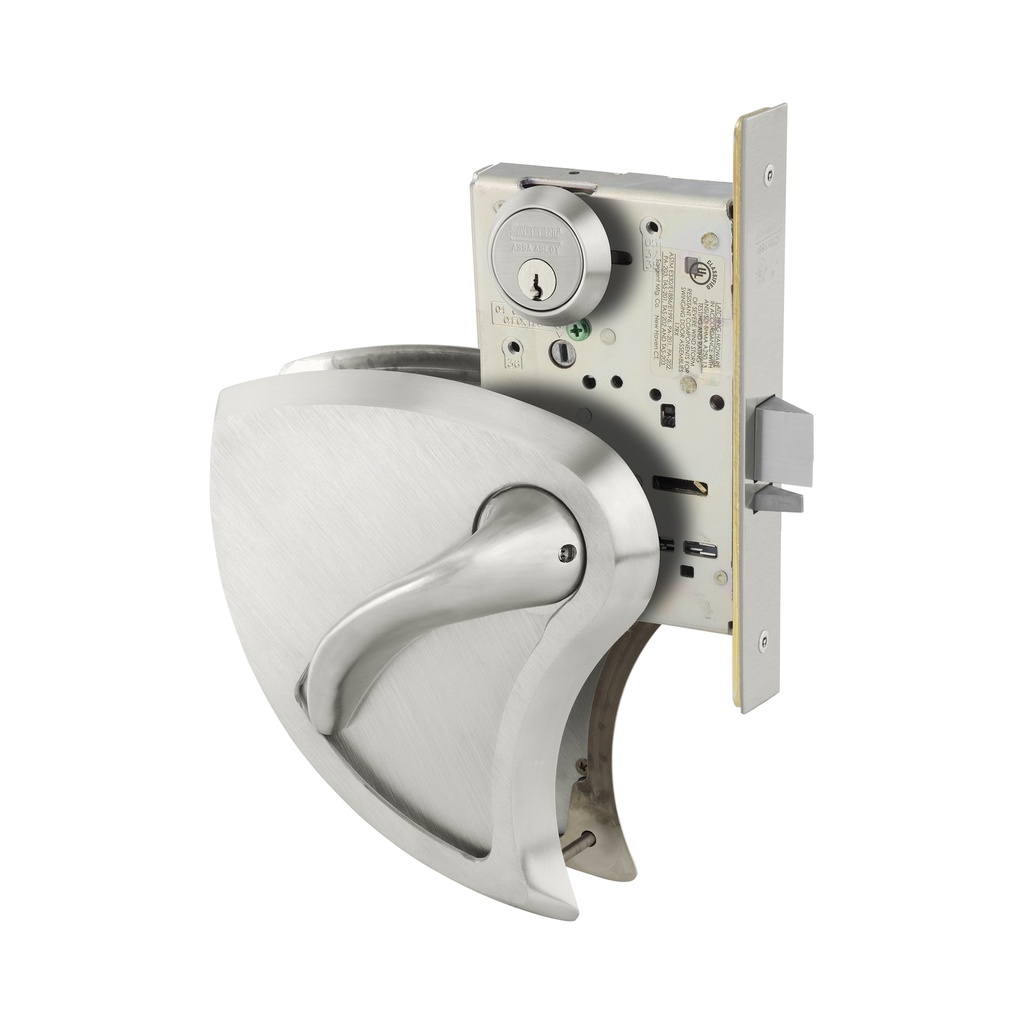

Sargent 8204 BHW Storeroom Function Mortise Lockset - Ligature Resistant

The Sargent 8204 BHW is an ultra-heavy-duty Grade 1 Ligature-Resistant Mortise Lockset specifically engineered for high-risk behavioral health environments, psychiatric hospitals, and correctional facilities. Built upon the industry-leading Sargent 8200 Series chassis, this lockset provides the highest level of physical security while prioritizing patient safety. The BHW trim features specialized sloped surfaces and a tapered design to minimize potential attachment points, making it an essential component for any comprehensive suicide prevention strategy.

Permanent Storeroom Security (ANSI F07)

The 8204 function is designed for spaces that must remain locked to unauthorized individuals at all times, such as medication rooms, supply closets, or mechanical areas.

• Always-Locked Exterior: The outside lever remains rigid and inoperative at all times. Entry can only be achieved by a physical key using the standard LA Keyway.

• Automatic Re-locking: There is no toggle or button that can be used to accidentally leave the door unlocked. Once the key is removed, the door is instantly secure.
• Immediate Safe Egress: To ensure compliance with Life Safety codes, the inside lever is always free. This allows occupants to exit the room instantly without the use of a key or special knowledge.

• Deadlocking Latchbolt: Features a 3/4" throw stainless steel latchbolt with an auxiliary deadlatch that prevents "shimming" or unauthorized manipulation of the latch when the door is closed.


Specialized BHW Ligature-Resistant Trim

The BHW trim is the centerpiece of the Sargent Behavioral Health Series, designed to balance a therapeutic "normative" aesthetic with rigorous safety standards.

• Sloped & Tapered Surfaces: All components of the BHW lever and escutcheon are tapered to prevent the looping of cords, bedsheets, or other materials, significantly reducing the risk of ligature-related incidents.

• Integrated Lever & Rose: The lever is designed to overlap the rose, eliminating gaps where small items or strings could be wedged.

• Extreme Durability: The 8200 Series lockbody far surpasses ANSI/BHMA A156.13 Grade 1 requirements, tested to over 14 million cycles to withstand the most abusive environments.

• High-Security Fasteners: Supplied with Torx® security screws to prevent unauthorized tampering or removal of the hardware by patients.


Key Product Features

• ANSI/BHMA Grade 1 & Security Grade 1: The most robust mechanical rating available in the industry for mortise hardware.

• Behavioral Health Optimized: Specifically designed to minimize ligature points in healthcare and institutional settings.

• Sargent LA Keyway: Includes a 6-pin brass cylinder in the standard LA Keyway, compatible with existing Sargent master key systems.

• Fire-Rated Safety: UL/cUL Listed for use on 3-hour fire-rated doors, ensuring the integrity of fire barriers in hospital corridors.

• Vandal-Resistant Chassis: Constructed with a 12-gauge heavy-duty wrought steel lock case that is zinc dichromate plated for maximum corrosion resistance.
• ADA Compliant: The BHW lever design provides easy operation for staff while maintaining its safety-first profile.

Technical Specifications

Ordering & Installation Information

The Sargent 8204 BHW is a handed product, meaning the direction of the door swing must be specified at the time of order to ensure the ligature-resistant slopes are oriented correctly. It is designed to fit standard mortise door preparations, making it an ideal choice for both new construction and retrofitting existing facilities to meet modern safety standards.

Special Note: The door handing information is needed upon order placement. If you are unsure of the handing of your door, please compare the picture below to your opening for clarification.

Ideal Applications

• Psychiatric Hospitals: Securing nurse stations and supply rooms while protecting patient safety.
• Behavioral Health Units: Ligature-resistant hardware for patient corridors and common areas.

• Correctional Facilities: High-security, tamper-resistant locking for administrative and storage zones.
• VA Medical Centers: Upgrading facilities to meet current safety and ligature-resistant guidelines.
