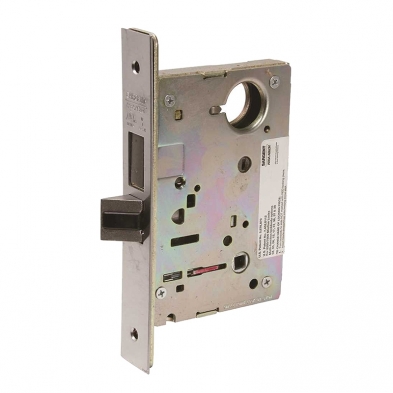

Sargent LB-8225 Mortise Lever Lock Body - Dormitory Exit Function

https://www.doorwaysplus.com/web/image/product.template/4536/image_1920?unique=36cd90d

Sargent LB-8225 Mortise Lever Lock Body - Dormitory Exit Function
Lead Time: 2-5 Business Days

541.93 541.9300000000001 USD 541.93

541.93

Not Available For Sale


  • Finish with BHMA code
  • Brand
  • ANSI Mortise Lock Function
  • Series
  • Part Type

This combination does not exist.


Share :

Sargent LB-8225 Mortise Lever Lock Body - Dormitory Exit Function


Includes:

  • Lock Body, Outside Front, Strike and Screw Pack
  • Lock Bodies will be furnished as RH Swing, Handing can easily be changed in the field
  • Will not work with 7800 (Knob) Mortise Locks or R8200 Mortise Locks


Function Info:
Key outside or thumbturn inside retracts and projects deadbolt
Trim from either side retracts latchbolt, when the deadbolt is in the retracted position
Trim outside is locked, when the deadbolt is projected
When deadbolt is projected, Trim inside retracts latchbolt and deadbolt simultaneously, unlocking outside trim
ANSI F13

 Sargent 8225 Mortise Lock Body Parts Diagram

Finish with BHMA code 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 619 - US15 Satin Nickel or 625 - US26 Polish Chrome
Brand Sargent
ANSI Mortise Lock Function F13 - Dormitory
Series Sargent - 8200 Series
Part Type Lock Body
Sargent 8200 Lock Body Parts Manual.pdf
Download
Sargent Mortise Lock Installtion Instructions A7772F.pdf
Download
Sargent Mortise Lock Template 7800 8200 7057R.PDF
Download
