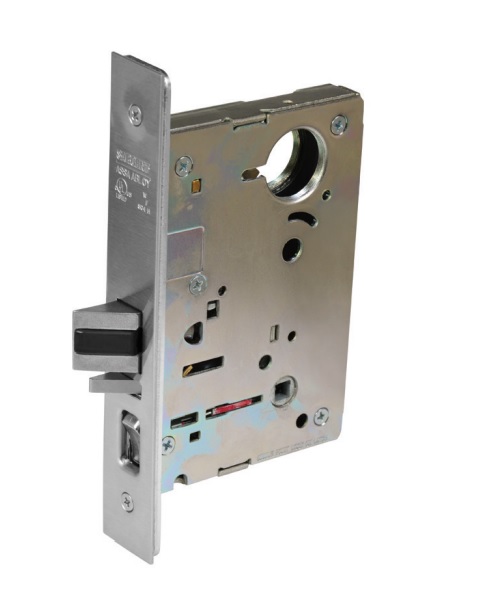

Sargent LB-8255 Mortise Lever Lock Body - Office Entry Function
Sargent LB-8255 Mortise Lever Lock Body - Office Entry Function
Lead Time: 2-5 Business Days
Sargent LB-8255 Mortise Lever Lock Body - Office Entry Function
Includes:
- Lock Body, Outside Front, Strike and Screw Pack
- Lock Bodies will be furnished as RH Swing, Handing can easily be changed in the field
- Will not work with 7800 (Knob) Mortise Locks or R8200 Mortise Locks
Function Info:
Key outside retracts latchbolt
Trim inside always retracts latchbolt, outside trim remains locked
Trim outside is locked & unlocked by toggle only
Auxiliary deadlatch
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 619 - US15 Satin Nickel or 625 - US26 Polish Chrome |
| Brand | Sargent |
| ANSI Mortise Lock Function | F04 - Office Entry |
| Series | Sargent - 8200 Series |
| Part Type | Lock Body |
