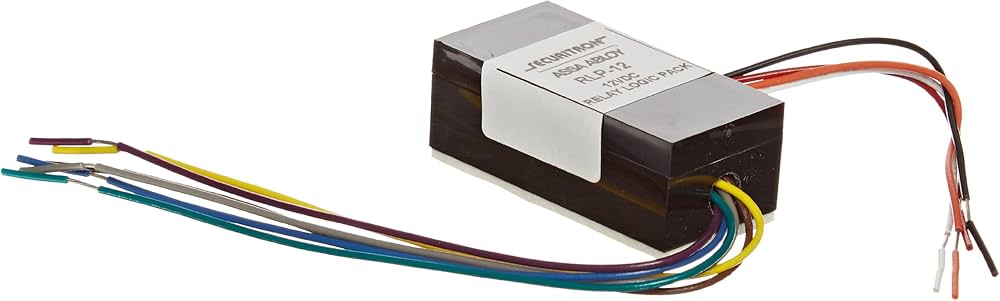

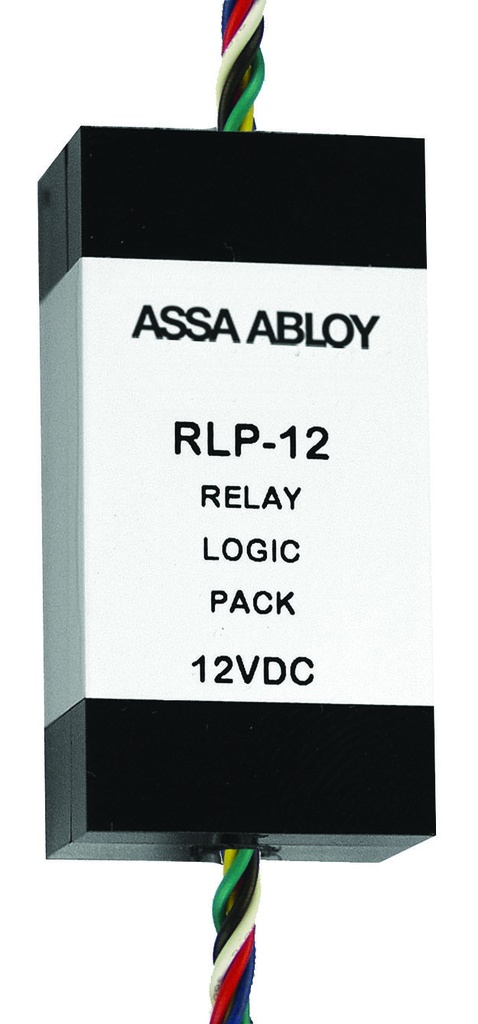

Securitron RLP Relay Logic Pack

The Securitron RLP Relay Logic Pack is an economical, multi-function logic circuit designed to solve complex signaling challenges within any access control system. This versatile DPDT latching alarm relay provides a wide range of programmable solutions, from creating two-door interlocks (mantraps) to initiating precise signal delays. It is the ideal component for installers who need to harmonize door state reporting from multiple monitoring points, ensuring that "door forced" or "door prop" alarms are not triggered by minor timing discrepancies between sensors.

Beyond its role as a latching relay, the Securitron RLP is frequently utilized to provide a necessary time delay for door operators when integrated with electric locks. This ensures the lock fully retracts before the operator attempts to swing the door, preventing hardware damage and ensuring code-compliant egress. Whether you are building an interlocked trap entry or simply need additional NO or NC dry status signals for remote monitoring, the RLP provides industrial-grade logic in a compact, energy-efficient footprint. Backed by the MagnaCare® lifetime replacement warranty, this logic pack is a "no-fault" solution for critical security infrastructure.

Product Features

• Multi-Function Logic: Can be configured as a DPDT latching relay or a multi-point signal harmonizer.

• Interlock Ready: Perfect for creating a relay interlock circuit for specialized "mantrap" or airlock entryways.
• Timing Harmonization: Eliminates timing problems among multiple monitoring points to prevent false alarm reporting.

• Door Operator Delay: Provides the essential brief signal delay required to sync electric locks with automatic door operators.

• Dry Contact Versatility: Adds Normally Open (NO) or Normally Closed (NC) dry status signals to any existing system.

• Low Power Consumption: High-efficiency design draws only 15 mA at 24 VDC, minimizing the load on your system power supply.

• MagnaCare® Warranty: Includes a lifetime, no-fault, no-questions-asked replacement guarantee.


Technical Specifications

• Relay Configuration: 1 Amp DPDT (Double Pole Double Throw).

• Electrical Requirements: 30 mA at 12 VDC or 15 mA at 24 VDC.

• Environmental Range: Reliable performance in extreme temperatures from -13° to 158°F (-25° to 70°C).

• Application Use: Ideal for shunting alarms, triggering actions, or reporting status.
• Mounting: Compact board design suitable for enclosure or backbox mounting.
