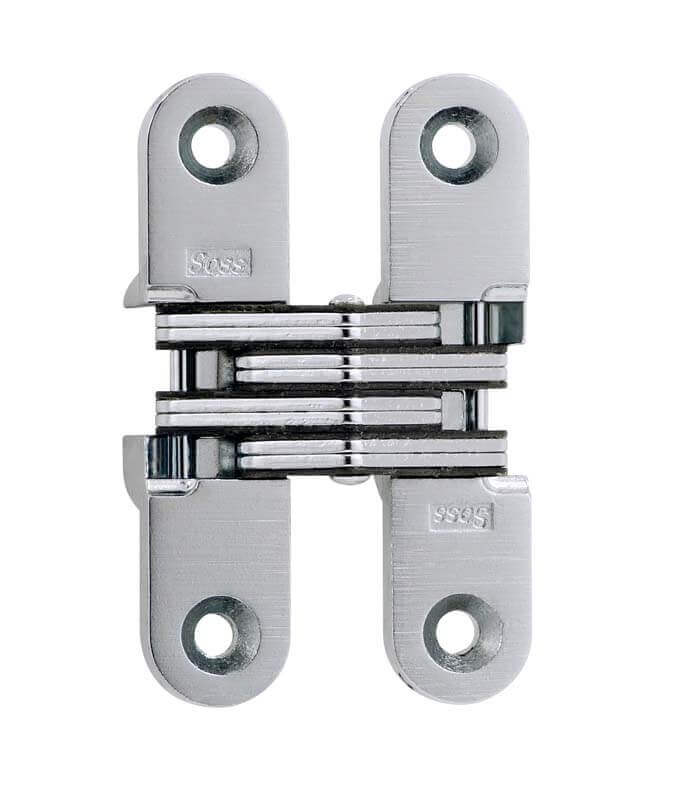

SOSS 208 Invisible Hinge for 1" Minimum Door Thickness
The SOSS® Invisible Hinge model #208 is suitable for applications in both wood and metal, accommodating thicknesses between 1″ and 1-1/8″. This model is crafted from a combination of zinc and steel, while nylon links ensure exceptional strength and durability. Capable of a complete 180° opening, the SOSS® Invisible Hinge functions as a single action hinge.
Wood screws included. Machine screws are available for an additional charge.
Dimensions
| A | 5/8″ (15.8mm) |
| B | 29/64″ (11.51mm) |
| C | 2-3/4″ (69.85mm) |
| D | 9/64″ (3.57mm) |
| E | 5/32″ (3.97mm) |
| F | 1-11/32″ (34.13mm) |
| G | 3/64″ (1.19mm) |
| H | 29/32″ (23.02mm) |
| I | 9/32″ (7.14mm) |
| Min. Material Thickness | 1″ (25.40mm) |
| Wood Screw Sizes | #8×1-1/4″ (4.2x32mm) |
| Soft Wood Pilot Hole | No. 48 |
| Hard Wood Pilot Hole | No. 35 |
| Machine Screw Sizes | #8-32×5/8″ |
| Hinge Weight | .34 lb. |
Additional Information
| Application | Cabinet, Metal, Wood |
|---|---|
| Min. Material Thickness | 1″ |
| Fire Rating | No |
| Power Transfer | No |
| Closer | No |
| Counter Bored Screw Holes | No |
| Screws Included | Wood |
| Packaging | 1/Box = 1 each |
| Packages Per Container | 1 |
| Price Per | Pair |
| General - US Finishes | US26D - Satin Chrome or US26 - Polished Chrome or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US5 - Blackened Satin Brass or US14 - Polished Nickel or US19 - Flat Black or UNP - Unplated or US10BL - Oil Rubbed Bronze Lacquered |
| Brand | SOSS |
| Hinge Type | Invisible |
| Base Material | Steel |
| Door Thickness | 1" Dr Thickness, 1-1/8" Dr Thickness |
