Magnetic Lock Configurations
Secure your facility with high-performance Magnetic Lock Applications designed for maximum holding force and fail-safe reliability. Ideal for glass storefronts, high-security interior doors, and timber frames where mechanical latching isn't preferred, these configurations provide a sophisticated, non-handed locking solution. By utilizing a powerful electromagnetic bond, our magnetic lock kits offer a durable, maintenance-free security boundary that integrates seamlessly with your existing access control system.
Basic Magnetic Lock Application
A standard security setup for interior openings. This configuration pairs a high-strength magnetic lock with a basic keypad or proximity reader for entry and a simple push-button for exit. Perfect for secure storage rooms and private offices.

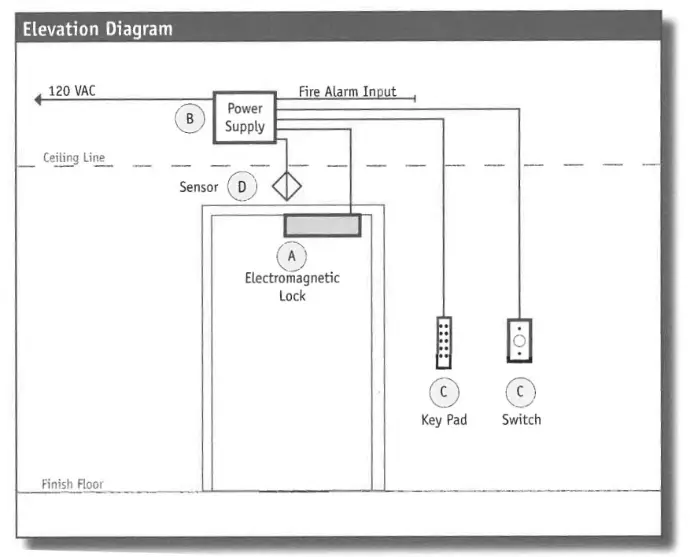

Magnetic Lock w/ PIR Sensor Application
A completely touchless egress configuration. A Passive Infrared (PIR) sensor is mounted above the door to detect an approaching user. As you enter the detection zone, the PIR sensor automatically cuts power to the magnet for a hands-free exit—ideal for high-traffic or hygienic environments.

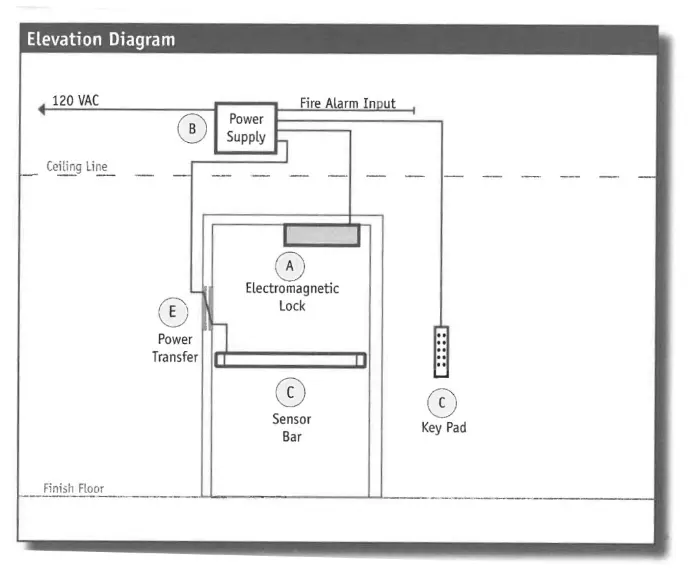

Magnetic Lock w/ Sensor Bar or Handle Application
The most intuitive manual egress solution. The magnetic lock is paired with a touch-sensitive sensor bar mounted to the door. Simply touching the bar breaks the power circuit, allowing the user to push the door open in one continuous, natural motion.

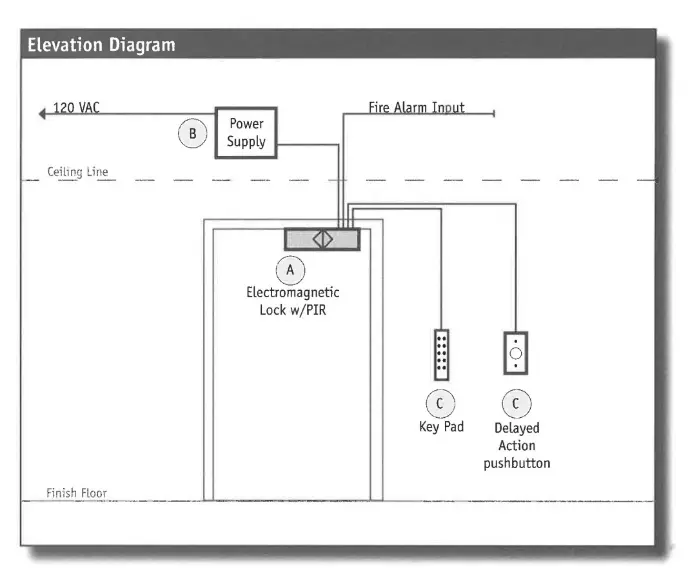

Magnetic Lock w/ PIR Sensor & Delayed Action Push Button Application
A high-security setup that ensures code-compliant redundancy. The PIR sensor provides hands-free egress, while a delayed-action push button acts as a secondary manual release. If the sensor is obstructed, pressing the button holds the lock open for a set time to allow exit.

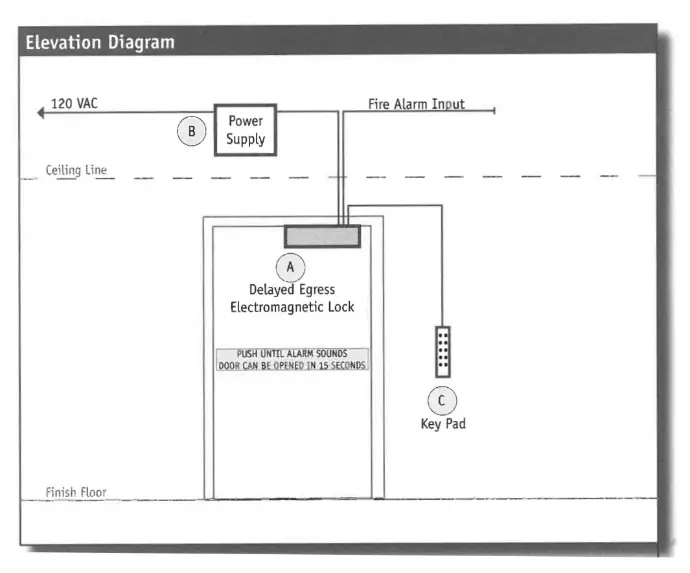

Delayed Egress Magnetic Lock w/ Exterior Switch Application
Building on the delayed egress model, this version features an exterior keyswitch. This allows authorized staff to bypass the alarm and delay functions when entering from the outside, providing secure access without disrupting the local security alerts.

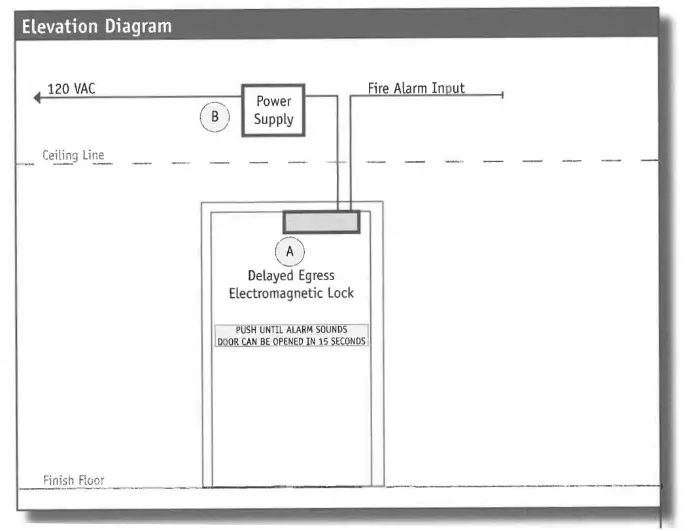

Delayed Egress Magnetic Lock Application
Designed for loss prevention and life safety. When a user pushes against the door, the delayed egress lock sounds an alarm and maintains the bond for 15 or 30 seconds. This delay deters unauthorized exiting while ensuring the door eventually releases to meet fire-safety standards.
