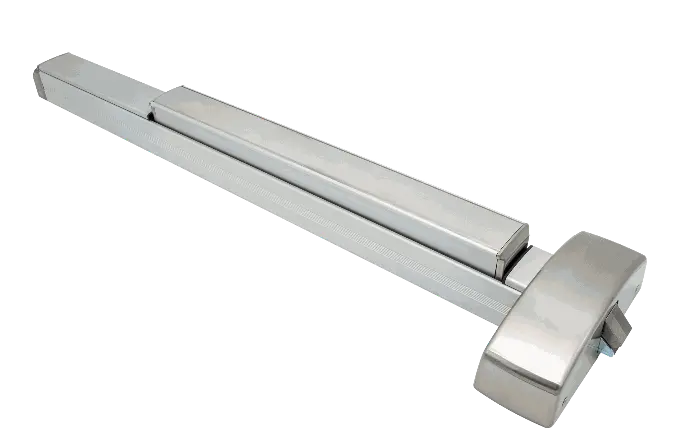

Exit Devices
More commonly known as, "Push Bars," these devices allow for immediate egress, or exit, from a building.
Depending on the door application, single or double door(s), dictates which type to be used:
Single Doors:
- Rim Devices
- Mortise Devices
- Concealed Vertical Rod
Double Doors:
- Rim Devices w/ a Mullion or a Double Door Strike
- Surface Vertical Rod Devices
- Concealed Vertical Rod Devices
- Mortise Exit Devices
It is important to note if the door is Fire-Rated or not. Fire-Rated Devices are made differently from Non-Rated Devices, as well as, Fire-Rated Devices can NOT be "Dogged Down," or the latch held in.

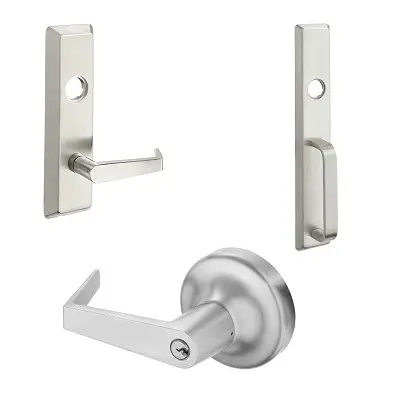

Outside Exit Trims
Used to control the side opposite of the Exit Device, or Push Bar.
Common Functions Available:
- Storeroom/ Night Latch
- Classroom
- Passage
- Electrified (Fail Safe vs Fail Secure)
Outside trims typically go with a corresponding push bar. Brands for the most part do not interchange.

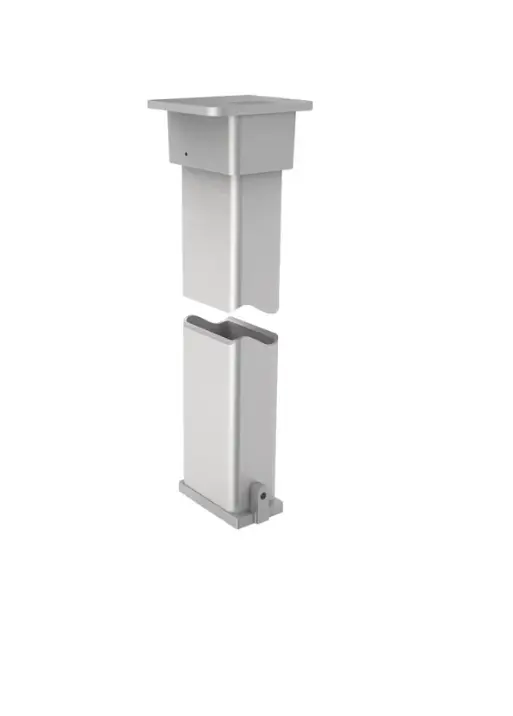

Removeable Mullions
Used in Double Door Applications acting as a removable jamb.
Options Include:
- Lockable vs Non-Lockable
- Fire-Rated vs Non-Rated
Parts are brand specific
