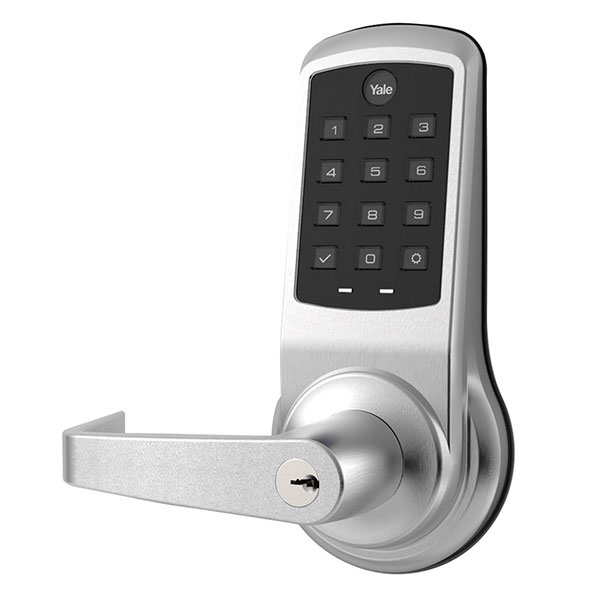

Accentra NexTouch AU-NTB613-NR Keypad Lockset with Key Override
The Accentra NexTouch Generation 3 is a state-of-the-art cylindrical keypad lock designed to bring high-level security and effortless access management to any commercial facility. Engineered for durability and sleek aesthetics, the AU-NTB613-NR features a robust touchscreen interface paired with a mechanical key override for maximum reliability. Whether you are securing a private office, a multi-family common area, or a healthcare suite, the NexTouch provides a "future-proof" solution that balances sophisticated technology with ANSI/BHMA Grade 1 strength.
Enterprise-Grade Performance & Durability
- Maximum Security Certification: ANSI/BHMA Grade 1 certified, ensuring the lock can withstand millions of cycles and heavy physical abuse.
- 3-Hour Fire Rating: UL Listed for use on fire-rated door assemblies for up to three hours.
- Extreme Weather Resistance: Equipped with a full gasket seal, the NexTouch operates in temperatures ranging from -40°F to 140°F and up to 95% humidity.
- Anti-Tamper Lockout: Integrated keypad lockout temporarily disables the device for 180 seconds after five consecutive incorrect attempts to prevent unauthorized entry.
Architectural Flexibility & Compliance
The NexTouch is designed with a universal approach to accessibility and style. Its ergonomic lever design ensures ADA Compliance (A117.1 Accessibility Code), requiring minimal dexterity or strength to operate.
- In-Stock Finish: US26D Satin Chrome (Available for immediate shipping).
- Special Order Finishes: Bright Brass (605), Oil Rubbed Bronze (613E), and Black Suede Powder Coat (BSP).
- Versatile Keying: Compatible with Sargent LA-LC, Schlage C, and Yale PARA keyways. Also available in SFIC (Small Format Interchangeable Core) configurations to match your existing key hierarchy.
Technical Specifications
- Handing: Non-handed (Field reversible).
- Door Thickness: Fits standard 1-3/4" doors.
- Strike: 4-7/8" x 1-1/4" ANSI curved lip strike.
- Latch: 1/2" deadlocking throw with 2-3/4" backset.
- Power: Operable via 4 AA alkaline batteries with an integrated low-battery LED indicator.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal or BSP - Black Suede Powder Coat or 605 - US3 Polish Brass |
| Standard Cylinders and Keyways | Yale PARA E1R Keyway or Schlage C Keyway or Best/Falcon SFIC Format - Less Core or Arrow AR1 Keyway |
| Brand | Accentra (formally Yale Security) |
| Trim Design | AU - Augusta Lever |
| Series | Accentra - NexTouch |
| ANSI Cyl Lock Function | Keypad |
