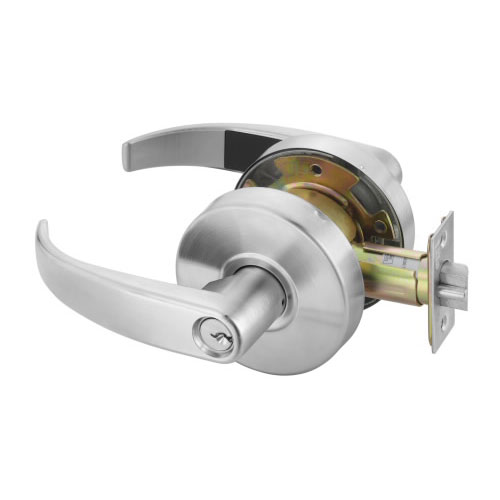

Accentra PB 4607LN Office Entry Function, Cylindrical Grade 2 Standard Duty Lockset, 2 3/4" Backset x 4 7/8" ASA Strike
Function Information:
- For entrance, general home or office doors.
- Deadlocking latchbolt.
- Either lever operates latchbolt (except when outside lever is locked from inside).
- Pushing turn button in inside lever locks outside lever. (Automatically releases when inside lever is turned or key is rotated in locked outside lever.)
- Outside lever may be retained in locked position by pushing and rotating turn button 90° clockwise to a horizontal position; not released until turn button is manually returned to the vertical position.
- Latchbolt is operated by key in outside lever or by rotating inside lever.
- Inside lever always active.
- ANSI F109
Key Features:
- Certified Security: This lockset is ANSI/BHMA Grade 2 certified, ensuring a trusted level of security and performance. It's also UL fire-listed, providing peace of mind for safety-conscious users.
- Versatile Design: With field reversible handing and multiple product options, this lockset accommodates a variety of commercial applications, offering flexibility to suit different needs.
- Economical Solution: Designed to fit projects of all budgets, this lockset delivers quality without breaking the bank.
- Reliable Performance: Known for its durability, this lock guarantees long-lasting performance, reinforced by over 170 years of trusted brand legacy.
Combining practical function with robust security features, the Accentra PB 4607LN lockset is engineered for those who prioritize both operational ease and peace of mind in their security solutions.
Yale 4600LN Specifications:
| For Doors | Adjustable for doors 1-3/8" (35mm) to 1-3/4" (44mm). |
| Backset | 2-3/4" (70mm) standard or 2-3/8" (60mm) optional backset. |
| Latchbolt | 2-3/4" (70mm) backset, 1/2" (13mm) throw latchbolt deadlocking or plain supplied standard. |
| Through Bolts | 4600LN cylindrical lever locks are supplied with optional through-bolts. Installation of through-bolts is at the discretion of the installer. |
| Strike | ANSI strike 4-7/8" x 1-1/4" x 1-1/4" (124mm x 32mm x 32mm) lip to center supplied standard. |
| Hand | Non-Handed and easily field reversible. |
| Cylinder | Brass, 6-pin, PARA (E1R) keyway. |
| Keys | Two, nickel silver, Keyed Differently |
| Warranty | 3 Year Limited Warranty |
Additional Specifications for the 4607LN AU Entry Lever Lockset
- Lock Function: Entry (Entrance)
- Finishes Available:
- 605 Bright Brass
- 606 Satin Brass
- 625 Bright Chrome
- BSP Black Suede Powder Coat
- Fire Rating: UL-cUL fire rated up to 3 hours, ensuring durability and safety under fire conditions.
- ADA Compliance: Meets ADA requirements, specifically A117.1 Accessibility Code, making this lockset accessible for everyone.
- Usage: Designed for medium-duty applications, ideal for both residential and commercial use.
- Lever Design: PB (Pacific Beach) offers a classic yet modern aesthetic, suitable for various interior designs.
These detailed specifications ensure that the 4607LN AU Entry Lever Lockset not only meets rigorous safety and accessibility standards but also offers a variety of finishes and design options to suit different preferences and environments.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal |
| Standard Cylinders and Keyways | Yale PARA E1R Keyway or Schlage C Keyway |
| Brand | Accentra (formally Yale Security) |
| ANSI Cyl Lock Function | F81 - Office Entrance |

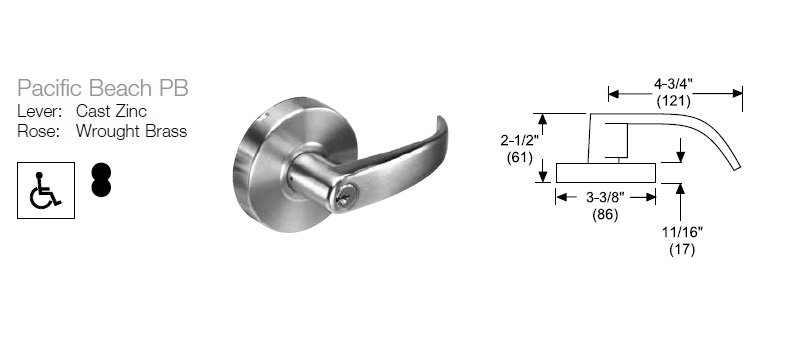

| Trim Design | PB - Pacific Beach |
| Series | Accentra - 4600 Series |
