DormaKaba 8616 AF86P 689 Surface Door Closer, Non-Hold Open, Tri-Pack

https://doorwaysplus.com/web/image/product.template/32473/image_1920?unique=4cadacc

DormaKaba 8616 AF86P 689 Surface Door Closer, Non-Hold Open, Tri-Pack

*** Free UPS GRD and Save 10% for 4 or More ***

299.25 299.25 USD 299.25

299.25

Not Available For Sale


  • Brand
  • Series
  • General - US Finishes
  • Closer Body Hole Pattern
  • Closer Arm Type

This combination does not exist.


Share :

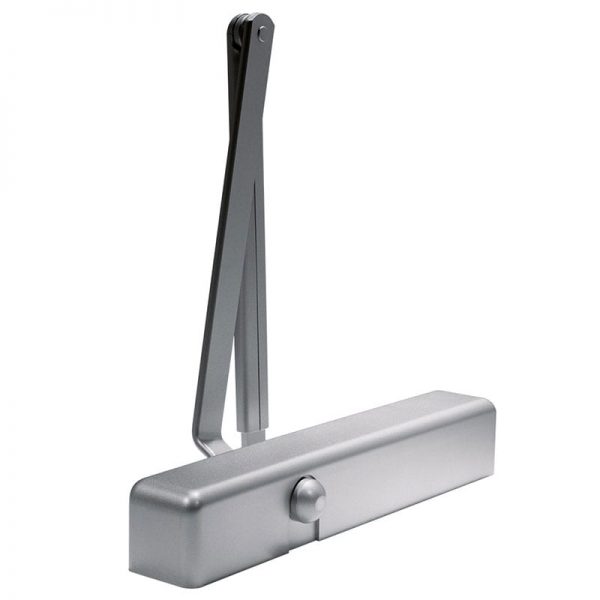

Dorma 8616 AF86P 689 Surface Door Closer, Non-Hold Open, Tri-Pack

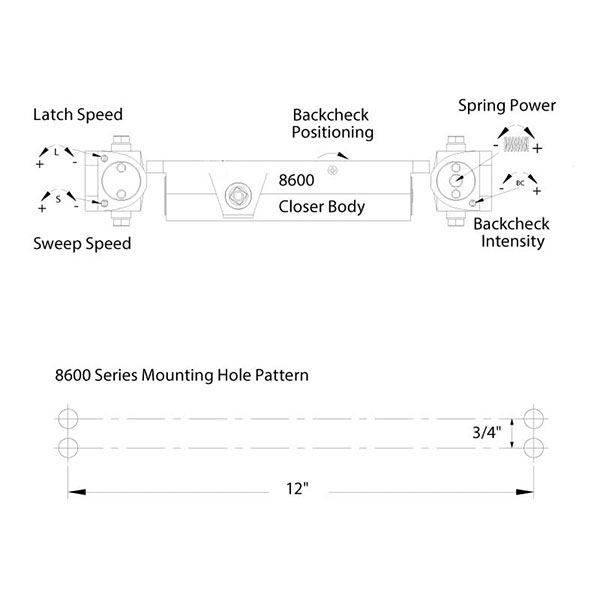

Dorma 8600 Series Surface Door Closer Hole Pattern

Grade 1 Surface Applied Door Closer

The 8600 series door closer is a non-handed, surface-mounted solution that features adjustable spring power and backcheck positioning. It is designed to meet the diverse needs of commercial and institutional applications, ensuring compliance with ADA barrier-free accessibility requirements.

This door closer holds an ANSI/BHMA Grade 1 certification.

Range of door sizes:
  • Exterior door widths to 48" (1219mm)
  • Interior door widths to 48" (1219 mm)
  • Door heights to 96" (2438 mm)
  • Door weights to 250 pounds (114kg)
  • Can be adjusted to meet ADA maximum 5lbs Opening Force on properly hung interior doors

Product Details

Modern aesthetics

  • The modern slim cover, flat form arm, and architectural finishes provide the aesthetic qualities required of architectural grade closers.

Applications

  • The 8600 Series is designed to provide a highly flexible door control system suitable for use on all hollow metal, aluminum, and wood doors typically used in commercial construction.

Controlled opening with backcheck feature

  • The 8600 Series door closer features a backcheck positioning adjustment for parallel arm applications, to maintain an ANSI backcheck range similar to regular and top jamb applications

Barrier-free

  • This door closer series, with it’s adjustable spring size 1-6, also meets barrier-free accessibility requirements.

Listings and Approvals:

  • ANSI Grade 1
  • UL and ULC
  • UL10C for positive pressure UBC 7.2 1997
  • CSFM
  • MEA

Warranty: 25 Years

General - US Finishes 689 - Spray Alumimun or 693 - Spray Black or 695 - Spray Dark Bronze
Brand Dorma
Series Dorma - 8600 Series
Closer Body Hole Pattern 12" x 3/4"
Closer Arm Type Tri Pack - Reg/Par Arm
Dorma 8600 Series Cut Sheet.pdf
Download
Dormakaba 8600 PA Mounting Template.pdf
Download
Dormakaba 8600 REG Mounting Template.pdf
Download
Dormakaba 8600 REG_TJ_PA Instructions.pdf
Download
Dormakaba 8600 Series Brochure.pdf
Download
