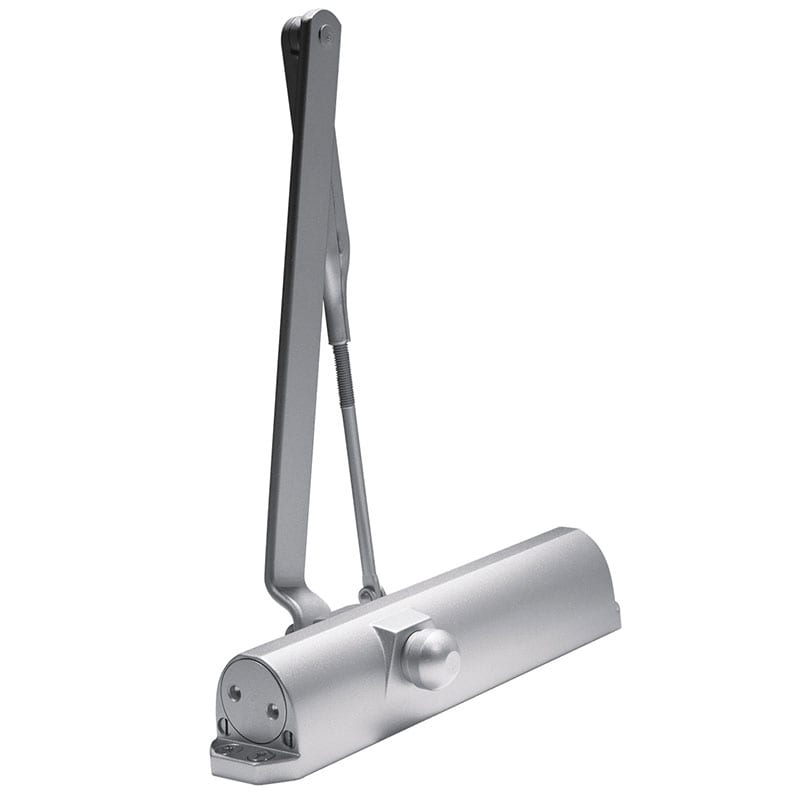

Dorma 7414 ARP Surface Door Closer, Non-Hold Open, Tri-Pack
The 7400 Series offers a versatile door control solution, expertly engineered for compatibility with a wide range of hollow metal, aluminum, and wooden doors commonly utilized in commercial construction. It is available in adjustable spring sizes of 1-4 and 3-6, accommodating various installation requirements. The doors can be equipped with either ball bearing hinges or pivots, and a selection of specialized brackets and adaptive hardware is available to enhance the functionality of the 7400 Series products.
Range of door sizes:
- Exterior door widths to 48" (1219mm)
- Interior door widths to 48" (1219 mm)
- Door heights to 96" (2438 mm)
- Door weights to 250 pounds (114kg)
- Can be adjusted to meet ADA maximum 5lbs Opening Force on properly hung interior doors
Modern styling
- The 7400 Series closers feature sleek aesthetics and adaptability, delivering safe and effective control for your doors.
Controlled opening with backcheck feature
- The 7400 Series is equipped with an adjustable backcheck that softens the impact when the door is forcefully opened.
Applications
- The 7400 Series is engineered to deliver a highly adaptable door control system, perfect for use with hollow metal, aluminum, and wooden doors typically seen in commercial construction projects.
Constant speeds
- The 7400 Series closer includes two separate valves that allow for independent control of the sweep and latch closing speeds, ensuring that the speeds remain constant even when temperatures vary.
Listings and Approvals:
- ANSI Grade 1
- UL and ULC
- UL10C for positive pressure UBC 7.2 1997
- CSFM
- MEA
Warranty: 25 Years
General - US Finishes | 689 - Spray Alumimun or 693 - Spray Black or 695 - Spray Dark Bronze |
Brand | Dorma |
Series | Dorma - 7400 Series |

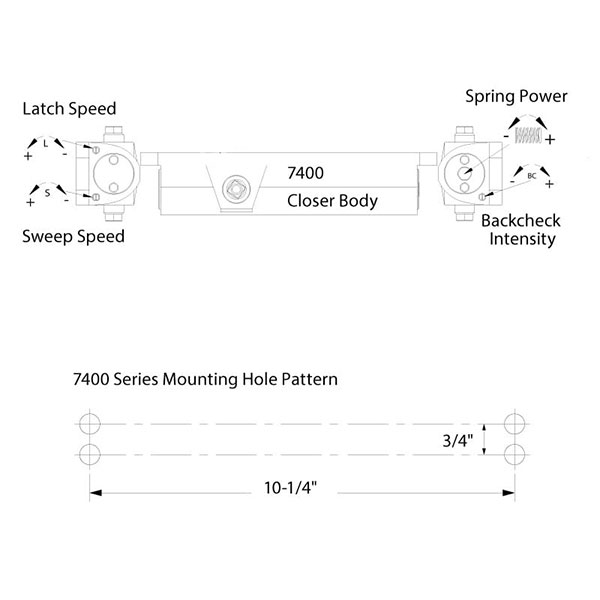

Closer Body Hole Pattern | 10-1/4" x 3/4" |
Closer Arm Type | Tri Pack - Reg/Par Arm |
