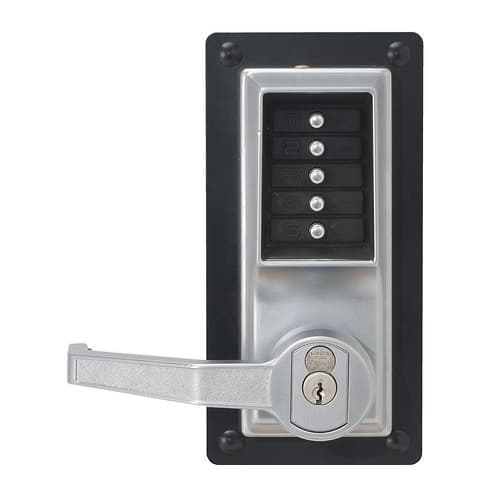

DormaKaba LP1021 US26D Mechanical Push Button Exit Trim
Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.
The Simplex LP1000 Series provides exterior access by combination, while allowing free egress with Exit Device (not supplied). This fully mechanical lock eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.
***** Special Note: We have supplied this Exit Trim with Sargent's 8888 Exit Device and PDQ's 6300 Series Rim Devices and had success, despite it not being listed above. ****
Product Details
No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements
Locking Device Options: Rim Exit Device: Compatible with most leading brands of Exit Devices—see list below (Exit Device and mounting hardware not included)
Number of Codes: Single access code—one easy-to-manage code for all users
Handing: Factory-handed; not field reversible
Operation Modes:
- Pushbutton Access
- Exit Device may be "dogged" without affecting the LP1000
Economical: A cost effective access control solution
Technical Details
Construction: Heavy-duty cast front housing; heavy-duty mounting plate; fixed ADA-compliant lever
Numeric Keypad: Vandal resistant, solid metal pushbuttons
Handing: Factory-handed; not field reversible
Standard Finishes:
- Antique Brass 05 (609)
- Satin Chrome 26D (626)
Optional Finishes:
- Bright Chrome 026 (625)
- Bright Brass 03 (605)
Exit Device Strike: Supplied with Exit Device
Tailpiece:
- 2¾" (70 mm) tailpiece for Exit Device operation from outside
- Optional 5" (125 mm) tailpiece for freezer doors (sold separately, part # 74773-000-01)
Minimum Stile Recommended: 5" (127 mm)
Weight: 8 lbs. (3.6 kg)
Interchangeable Cores: Small format (SFIC)—Best and equivalents (6 or 7-pin length); core not included
Removable Cores: Large format—Medeco/ASSA/Accentra (Yale)/Abloy (5 or 6-pin length), Corbin Russwin, Schlage, and Sargent; core not included
Door Preparation: Recessed through bolts may be required for Exit Device preparation
Door Thickness:
- 1⅜" (35 mm) to 2¼" (57 mm)
- Optional 5" (127 mm) tailpiece (sold separately, part # 74773-000-01)
Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant lever
Durability: Weather resistant
Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
Warranty: 3-year warranty
| Cylinder Options | SFIC or LFIC - Sargent or LFIC - Accentra or LFIC - Schlage |
| Door Hand | RHR - Right Hand Reverse or LHR - Left Hand Reverse |
| Brand | DormaKaba |
| Series | DormaKaba - LP1000 Series |
| General - US Finishes | 626 - Satin Chrome |
| Exit Device Trim Function | Keypad |
