Hager 2-659-0166 Round 4.5" Actuator - Logo Only
Specifications
Applications :
- For use with ADA low energy power operators
- Ideal installations include medical facilities, assisted living facilities, offices, clean rooms, and schools
- For wireless applications, must order receiver and transmitter separately
Certifications : NEMA rated

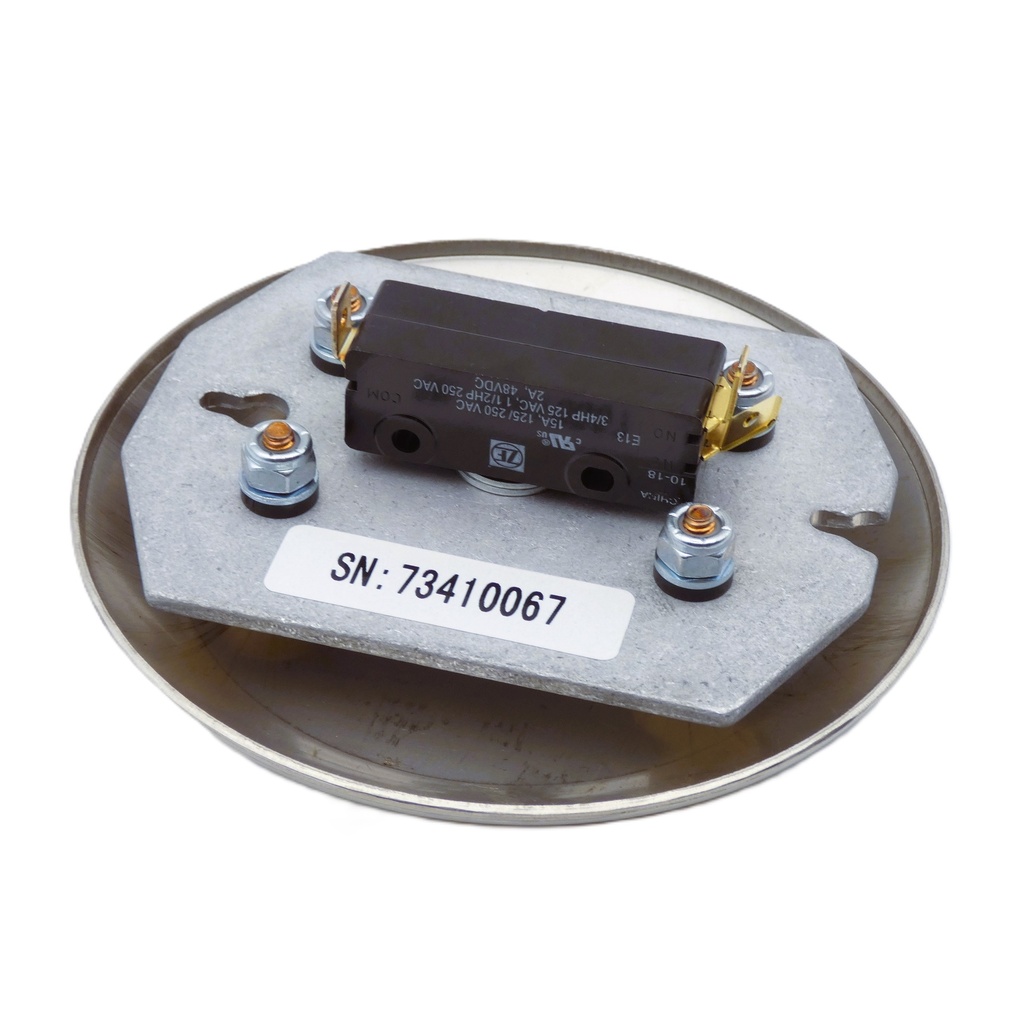

Electrical Specifications : 15A, SPDT (Cherry Switch)
Fasteners : 6-32 x 1" and 8-32 x 1" Allen head mounting fasteners
Features:
- Beveled edges
- Graphics embossed onto the faceplate for durability
- Stainless steel scratch-resistant finish
Finishes : US32D Satin Stainless Steel
Material : 16 gauge, 304 2B stainless steel (faceplate), 1/8" thick aluminum (backplate)
Notes: Can be ordered with transmitter and receiver for wireless installation
Operating Temperature: -20º to 120ºF (-30º to 49ºC)

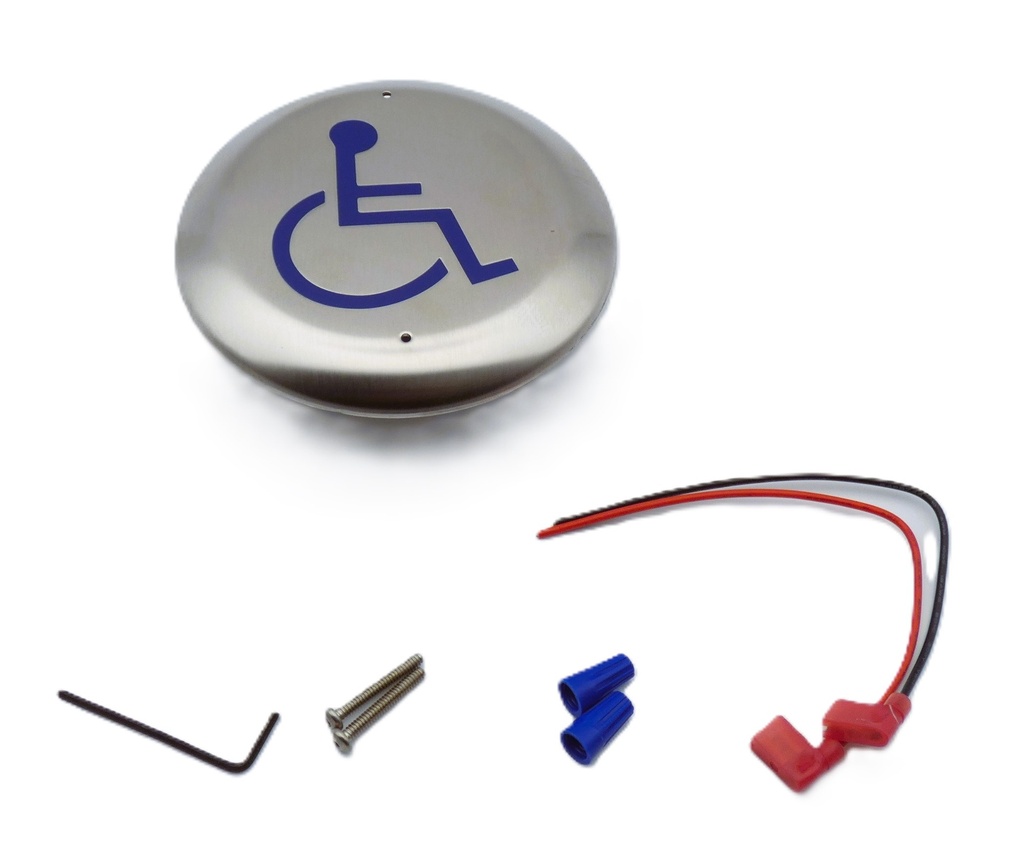

Product Description : 4.5" Round Actuator Handicap Symbol
Product Number : 2-659-0166
Warranty : 1 Year
Accessories
- 2-659-0241 - Universal Backplate required when mounting to double-gang electrical boxes
- 2-659-0167 - 4.5" Round Surface Mount Box
- 6-659-0168 - 4.5" Round Weather Ring
- 2-659-0184 - 3V Wireless Transmitter (433MHz)
- 2-659-0185 - 9V Wireless Transmitter (433MHz)
- 2-659-0183 - Wireless Receiver (433MHz)
| Brand | Hager |
Hager ADA Actuator Installation Instructions
Download
