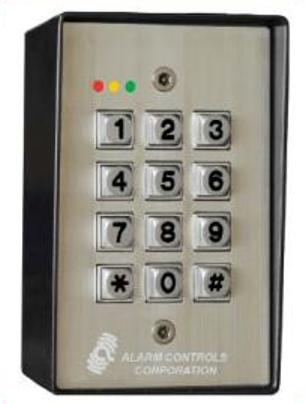

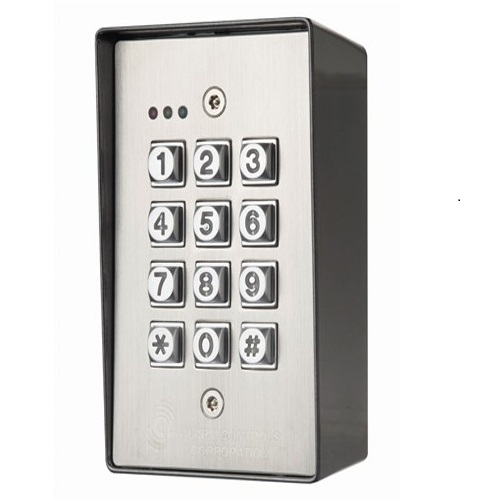

Alarm Controls KP-400 Weatherproof & Vandal-Resistant Digital Keypad
Self-contained digital keypad. Vandal resistant and weather resistant with durable backlit metal keys, housing, and back box; designed for indoor and outdoor applications.
Standard Features
Surface mount with black back box and 302 stainless steel faceplate with tamper-proof screws
True 10-digit operation (10 digits plus * and # keys)
Multiple outputs allow control of up to two devices (100 users on output 1, 10 on output 2)
Fully programmable from the keypad
Programmable passage and false-code lockout mode capabilities
Built-in tamper switch
Red, green and yellow LEDs for status and programming feedback
Request to Exit (REX) input
Duress output and door prop open alarm
Black powder coated die cast aluminum back box
Die-cast metal keys with audible and visible key press; Keys are backlit for visibility in dark areas
For indoor or outdoor applications
3 year warranty
Certifications & Listings: Conforms to IP66
Dimensions: Keypad with Back Box: 3-1/8" W x 4-1/2" L x 1-3/4" to 2-1/2" D
Electrical:
Operating voltage: 12 or 24 VAC or VDC, auto sensing
Operating Current: 12VDC; 10 mA at rest, 100mA active; 24VDC: 22 mA at rest, 120 mA active
Output 1: SPDT rated 5A at 24VDC
Output 2: SPDT rated1A at 24 VDC
Operating Temperature:
-4°F to +158°F [-20°C to +70°C]
Humidity: 5-95% relative humidity non-condensing
| Brand | Alarm Controls |
| Keypad Options | Weather Resistant |
| Key Pad Mounting | Surface |
| Voltage | 12 VDC, 24 VDC |
