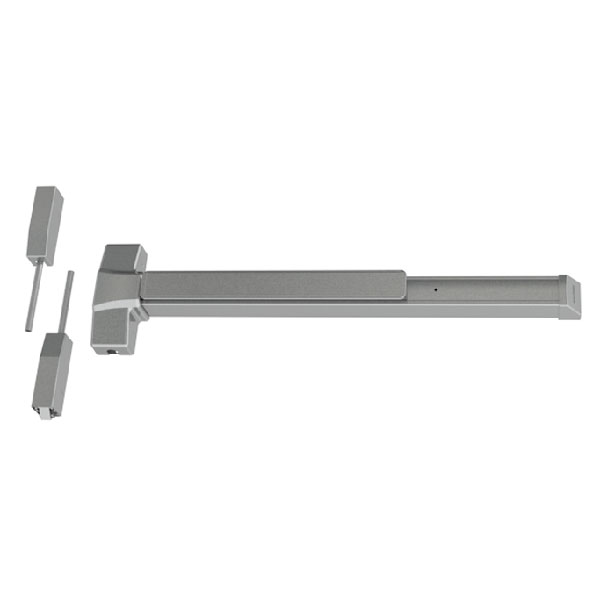

Hager 4501 SVR Exit Device - Non Rated - 4'0"x 8'0" Door
Hager 4501 SVR Exit Device - Non Rated - 4'0"x 8'0" Door
Lead Time(s):
Mechanical Versions: 4-7 Business Days
Electrical Options: 3-4 weeks
Hager 4501 SVR Exit Device - Non Rated - 4'0"x 8'0" Door
Certifications and Compliance Standards for the Exit Device
This exit device meets several rigorous certifications and compliance standards to ensure safety and reliability:
- BHMA Certified: It adheres to ANSI A156.3 Grade 1 standards, reflecting top-level performance and durability.
- UL Listings: The device is UL305 listed, denoting its approval for panic hardware. It is also rated for both positive pressure (UL10C) and neutral pressure (UL10B), ensuring effectiveness under various conditions.
- Accessibility Compliance: It complies with ANSI 117.1, ensuring accessibility for buildings and facilities, making it a suitable choice for inclusive environments.
- Severe Windstorm Resistance: The device meets the requirements for ANSI A 250.13, highlighting its capability to withstand extreme weather conditions.
- Additionally, it is Miami Dade NOA #11-1219.14 compliant, which underscores its reliability in windstorm-prone areas. Note that this compliance must be explicitly specified when selecting the product.
This combination of certifications underscores the device's exceptional quality and suitability for various safety and structural requirements.
Minimum Stile Width Requirements for Doors
When selecting doors, it’s crucial to understand the minimum stile width requirements to ensure proper fit and functionality. Here’s what you need to know:
- Single Doors: For a single door, the stile must have a minimum width of 5-3/8 inches (137 mm). This measurement is essential for accommodating any required stops.
- Double Doors: The minimum stile width for double doors is slightly smaller, at 4-7/8 inches (124 mm). This width is necessary to ensure that the doors can function correctly and align properly.
- Rim Device with Double Door Strike: If you're using a rim device with a double door strike, the minimum stile width remains at 4-7/8 inches (124 mm). This ensures compatibility with the strike and proper door operation.
It's important to measure the stile width from the edge of the door to achieve precise installation. Keeping these specifications in mind will help in selecting the right components for your door setup.
Explore Essential Parts and Accessories for Your Exit Device
Are you looking to enhance the functionality of your exit device? Discover a range of trim options that complement your system, ensuring both security and style:
- Night Latch Trim: Upgrade with a robust night latch featuring a sleek lever. This trim not only reinforces security but adds a touch of modern elegance to your exit setup.
- Cylinder Escutcheon Trim: Ideal for those who need an extra layer of security. This trim kit incorporates a cylinder escutcheon, providing additional protection against unauthorized access.
- Blank Escutcheon Trim: For applications where cylinder access is not necessary, opt for a blank escutcheon trim. This choice maintains the aesthetic integrity of your device while offering a streamlined appearance.
Key Features:
- Durable Construction: Made from high-quality materials designed to withstand frequent use and resist wear and tear.
- Stylish Design Options: Choose from a variety of finishes to seamlessly match your existing decor or architectural style.
- Easy Installation: Each part is designed for simple integration with your current exit device, minimizing downtime and reducing installation costs.
Why Upgrade?
- Enhanced Security: Additional parts increase the resistance to forced entry, ensuring peace of mind.
- Improved Functionality: These accessories optimize the performance of your exit device, making it more reliable and user-friendly.
Elevate your security measures today by selecting the right parts and accessories that best suit your needs.
| General - US Finishes | US26D - Satin Chrome or US32D - Satin Stainless Steel/ 630 or US26 - Polished Chrome or BSP - Black Suede Power Coat or US3 - Polished Brass or US4 - Satin Brass or US10B - Oil Rubbed Bronze |
| Hager Exit Device Prefixes | RX - Request to Exit Switch or RX2 - Dual Request to Exit Switches or LM - Latchbolt Monitoring or RXLM - Request to Exit and Latchbolt Monitoring or AI - Authorized Ingress or RXAI - Authorized Ingress with Key Monitoring or DE - Delayed Egress or OBDE - Onboard Delayed Egress or MLR - Motorized Latch Retraction or MLRX - Motorized Latch Retraction w/ Request to Exit Switch or MLRXLM - Motorized Latch Retraction w/ Request to Exit Switch & Latchbolt Monitoring or MLRLM - Motorized Latch Retraction w/ Latchbolt Monitoring |
| Door Opening Width | 48 Inches |
| UL Label Door | Non Rated Door |
| Brand | Hager |
| Exit Device Type | SVR Exit Device |
| Series | Hager - 4500 Series |
| Door Height | 8'0" Dr Ht |
