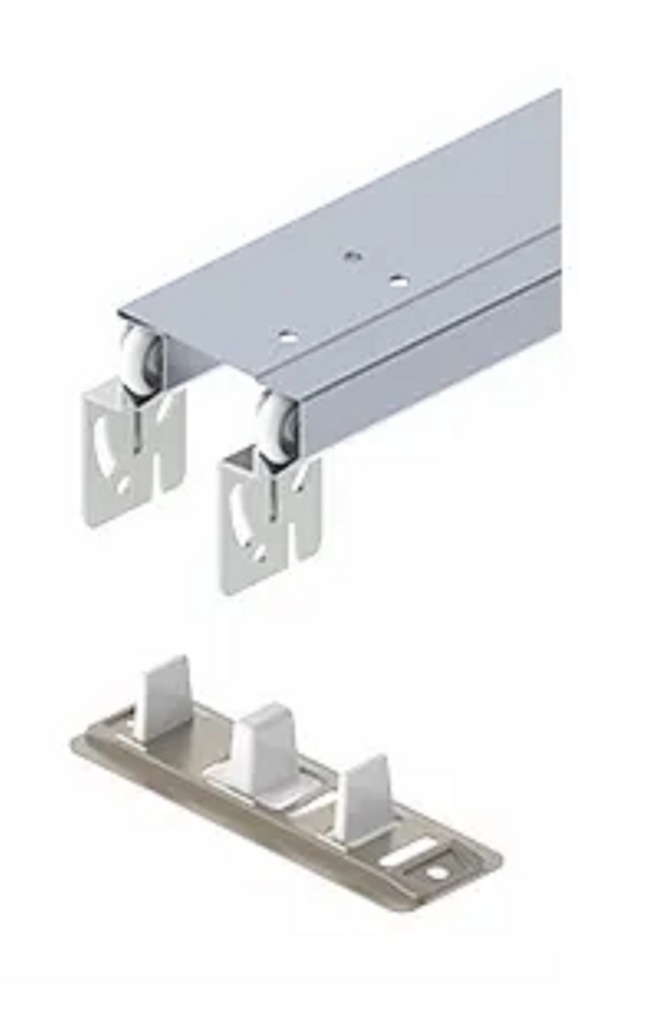

Hager 9614RS Residential By-Pass Track Set for 1-3/8" Thick Doors
Hager 9614RS Residential By-Pass Track Set for 1-3/8" Thick Doors
Lead Time: 3-7 Days
Hager 9614RS Residential By-Pass Track Set for 1-3/8" Thick Doors
Includes:
- Aluminum track
- (4) 1-wheel hangers
- (2) Flush cup pulls
- (1) Floor channel door guide
- Parts bag
Maximum Door Weight: Door weight up to 60 lbs. per door with single wheel hanger
Specifications:
Applications:
- Commercial
- Healthcare
- Hospitality
- Office
- Residential
Certifications:
- Meets performance requirements ANSI/BHMA A156.14 (Grade 1) for sliding doors by exceeding 100,000 cycles
- Type D02411-60
Features
- Track is galvanized steel with “V” shaped rails
- Optional soft-close (1-269-8651) for doors up to 150 lbs.
Length Options: 48”, 60”, 72”, & 96”
Maximum Door Thickness: Door thickness 1-3/8”
Notes:
- The 9614RS is the equivalent of previous By-Pass sets 9614 and 9683
- IMPORTANT: The components between new and previous versions are NON-INTERCHANGEABLE
| Length | 48 Inch or 60 Inch or 72 Inch or 96 Inch |
| Brand | Hager |
| Trackset Type | Bypass |
