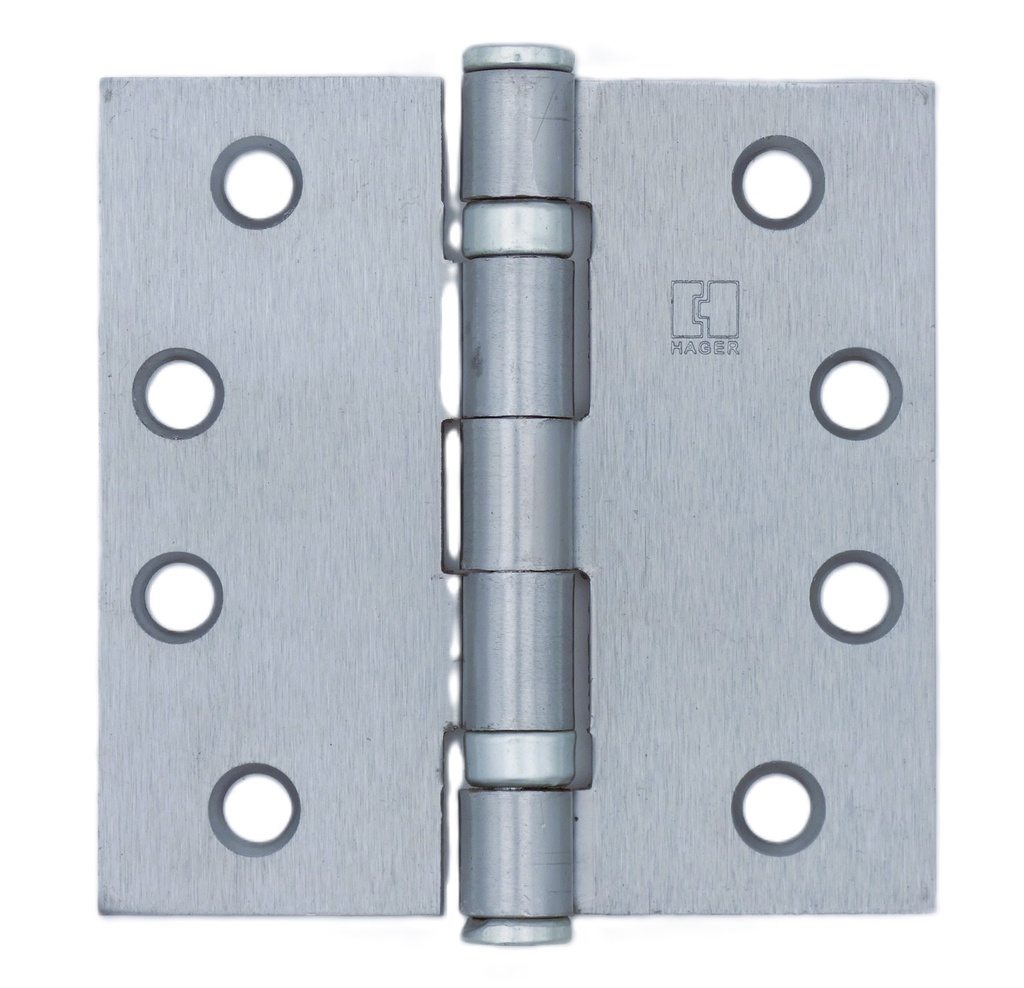

Hager BB1279 4.0 x 4.0 Full Mortise - Ball Bearing Hinge, Steel with plated finish.
Furnished standard with All wood screws (1 1/4" x 12 FPHW) and All machine screws (1/2" 12-24 FPHM)
Hinges are .129 thickness, For 1 3/4" door thickness. For use on medium weight doors or doors requiring low frequency service.
Material:
- Steel with Steel pin
- Non-rising removable pin with button tip and plug
- Two ball bearings
ANSI A8112
| General - US Finishes | US26D - Satin Chrome or US15 - Satin Nickel or US10B - Oil Rubbed Bronze |
| Hinge Height | 4.0" Hi |
| Hinge Width | 4.0" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Full Mortise |
| Hinge Options | Ball Bearing |
| Base Material | Steel |
| Hinge Corners | Square |
