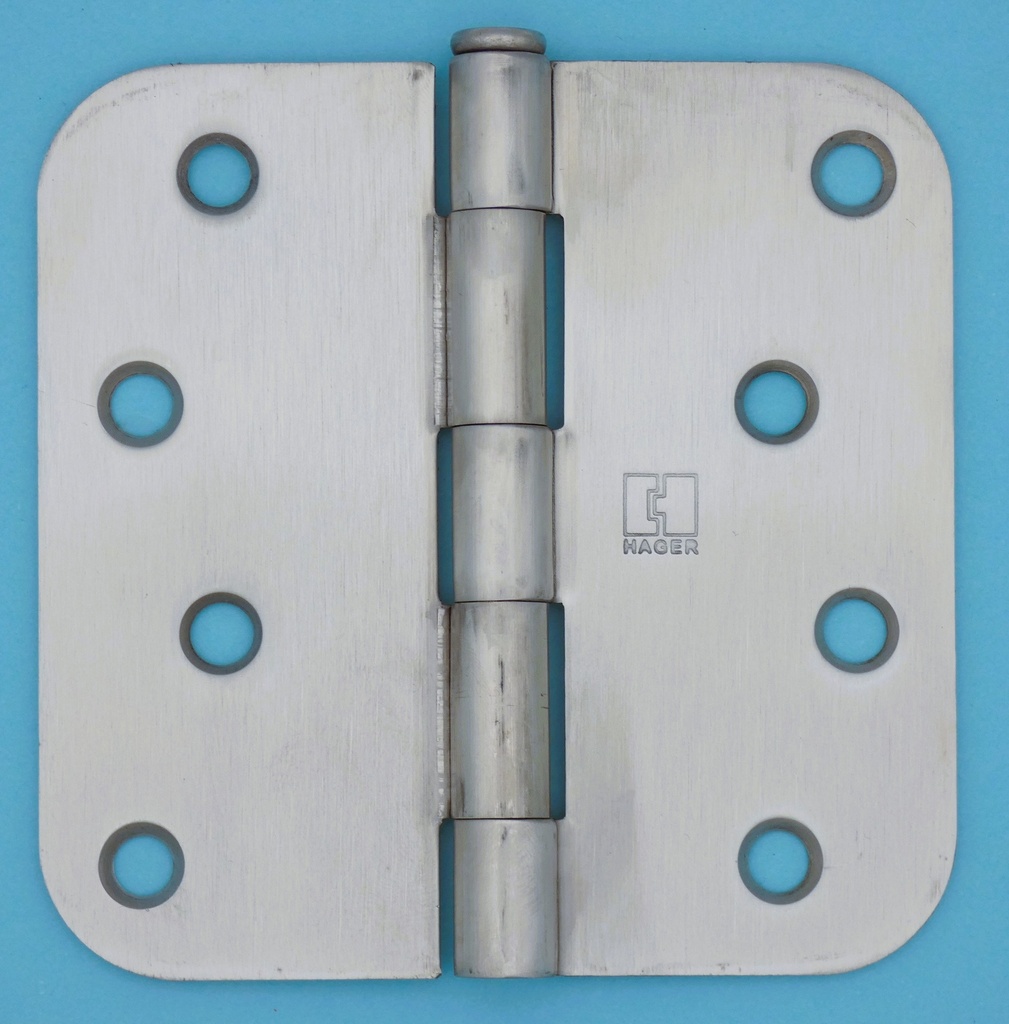

Hager RC1542 4" x 4" Non-Ferrous Hinge with 5/8" Radius Corners
The Hager RC1542 is a premium residential plain bearing hinge engineered specifically for high-moisture and coastal environments. Featuring 5/8" radius rounded corners, this hinge is designed to fit modern residential door preps commonly found in newer construction. Crafted from non-ferrous materials, the RC1542 is guaranteed not to rust, making it the ideal choice for exterior entryways, bathrooms, and laundry rooms.
Superior Corrosion Resistance for Coastal Living
Standard steel hinges eventually pit and rust when exposed to humidity or salt air. The Hager RC1542 solves this by utilizing solid brass or stainless steel construction. This non-ferrous build ensures that your hardware maintains its structural integrity and beautiful finish for the life of the home. Whether you choose the timeless US3 Bright Brass or the sleek US32D Satin Stainless Steel, you are investing in hardware that is impervious to oxidation.
Engineered for Precision Residential Preps
With a .085 metal gauge and a 4-inch profile, this hinge is perfectly balanced for standard residential doors. The 5/8" radius corners match the large-diameter router-cut mortises frequently used by door manufacturers, ensuring a snug, professional fit. To ensure a silent and smooth swing, Hager recommends lubricating the hinges with lithium grease during or after installation, as residential units are provided unlubricated from the factory.
Technical Specifications
| Feature | Specification |
| Model Number | Hager RC1542 |
| Dimensions | 4.0" x 4.0" (102mm x 102mm) |
| Hinge Type | Plain Bearing |
| Corner Radius | 5/8" (15.8mm) Radius Corners |
| Material Options | Solid Brass or Stainless Steel (Non-Ferrous) |
| Gauge (Thickness) | 0.085" (Standard Residential Weight) |
| Available Finishes | US3, US10B (Oil Rubbed Bronze), US15, US32D |
| Packaging | 2 Hinges per box (Pricing is Per Hinge) |
Installation and Custom Options
- Fasteners: Each hinge is furnished standard with matching 3/4 x 9 FH wood screws. Machine screws for metal frame applications are available for an additional price.
- Maintenance: Apply lithium grease to the pin and knuckles during installation to provide long-lasting, quiet operation.
- Special Orders: 3.5" x 3.5" sizes and the high-polish US32 Polished Stainless Steel finish are available by special quote.
How to tell the difference between Residential Hinge and Commercial Hinge
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or US15 - Satin Nickel or US3 - Polished Brass or US10R - Antique Bronze |
| Brand | Hager |
| Hinge Height | 4.0" Hi |
| Hinge Width | 4.0" Wi |
| Hinge Grade/Thickness | Residental Wt .085 to .106 |
| Hinge Type | Full Mortise |
| Hinge Options | Plain Bearing |
| Base Material | Stainless Steel, Brass |
| Hinge Corners | 5/8" Radius |
