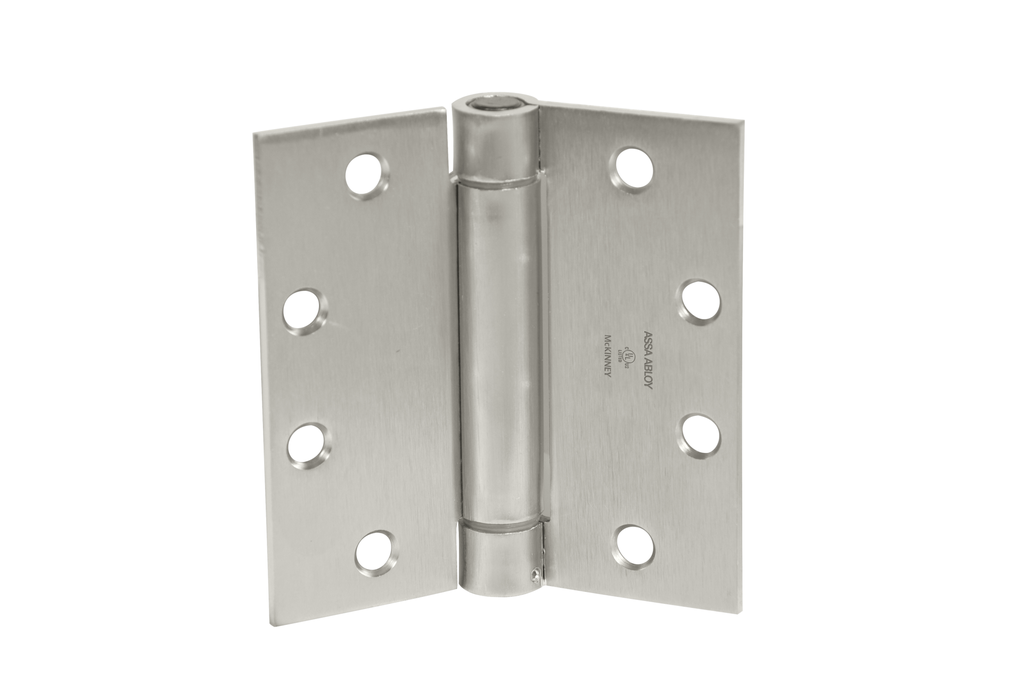

McKinney 1552 4.5" x 4.5" US32D Stainless Steel Spring Hinge
McKinney 1552 4-1/2" x 4-1/2" Spring Hinge, Full Mortise, Stainless Steel US32D
Lead Time: 1-4 Days
McKinney 1552 4-1/2" x 4-1/2" Full Mortise Spring Hinge in Stainless Steel (US32D)
Designed for standard weight, medium frequency doors, spring hinges are an effective alternative to door closers in locations such as apartments, hotels, motels, and office buildings. Typically, at least two hinges on the door should be spring hinges to ensure adequate closing force. The NFPA stipulates that labeled doors must have a minimum of two (2) spring hinges. This series of non-handed spring hinges is adjustable, allowing users to increase or decrease tension with the included hex key. A locking screw provides added tamper resistance once the appropriate tension is achieved. The hinges are .134 inches thick and come with all necessary wood screws (1-1/4 x 12) and machine screws (1/2" x 12-24).
Warning: The use of gasketing for smoke or sound insulation, adverse wind conditions, unbalanced air pressure, misaligned or twisted frames and doors, door bottoms, or incorrect latch settings may hinder proper door latching. Additional spring hinges might be necessary.
Generally, two hinges on the door must be spring hinges to provide adequate closing force. NFPA requires a minimum of two (2) spring hinges on labeled doors. This non-handed spring hinge series is adjustable, and tension can be added or reduced by means of a hex key that is provided. A locking screw provides tamper-resistance after the proper tension has been set. Hinges are .134 thick and are furnished with all wood screws (1-1/4 x 12) and all machine screws (1/2" x 12-24).
For added guidance, spring hinges in the 1552 series come standard with all machine and wood screws included for straightforward installation.
- For door weights up to 115 pounds, use two 4-1/2" height spring hinges and one equivalent size bearing hinge.
- For door weights up to 150 pounds, use three 4-1/2" height spring hinges.
This ensures proper closing action and aligns with recommended practices for medium frequency doors in commercial and residential settings.
Hinges are sold as Each
NFPA requires a minimum of two (2) spring hinges on labeled doors.
Additionally, the McKinney 1552 spring hinge series meets the ANSI K81081 certification standard, ensuring dependable performance and quality for commercial applications.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Brand | McKinney |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Spring Hinge |
| Spring Hinge Type | Single Acting |
| Base Material | Stainless Steel |
| Hinge Corners | Square |
