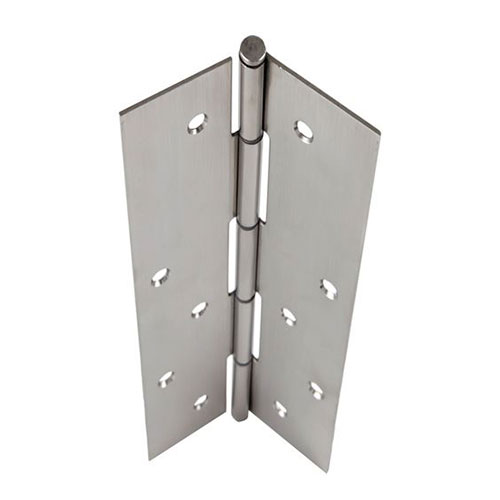

ABH A500-83-1/8" Stainless Steel Pin & Barrel Continuous Hinge
The ABH A500-83-1/8" is a heavy-duty concealed continuous hinge engineered for the most demanding environments. Constructed from 14-gauge 304 stainless steel, this pin-and-barrel hinge is designed to withstand high-abuse, high-traffic commercial applications. It provides a clean, secure installation with no exposed fasteners when the door is closed, making it as aesthetically pleasing as it is durable.
Key Features & Benefits
- Extreme Weight Capacity: Supports massive doors weighing up to 600 lbs and widths up to 4’0”, far exceeding standard aluminum geared hinges.
- Maximum Security: The concealed design ensures that fasteners are completely inaccessible when the door is shut, providing a tamper-proof solution.
- Superior Fire Rating: One of the highest ratings available, with a 3-hour rating for hollow metal doors and up to 90 minutes for composite wood fire doors.
- Universal Edge Design: Precision-engineered to work seamlessly with both beveled and square-edged 1-3/4” thick doors.
- Architectural Finish: Comes in a standard US32D Satin Stainless Steel finish, offering superior corrosion resistance and a modern look.
| Feature | Specification |
| Material | 14-Gauge 304 Stainless Steel |
| Hinge Type | Pin & Barrel (Continuous) |
| Max Door Weight | 600 lbs |
| Max Door Width | 48" (4'0") |
| Fire Rating | 3-Hour (Metal) / 90-Min (Wood) |
| Fasteners | Self-Drilling Machine Screws |
Why Choose the A500-83 for Your Facility?
The A500-83 is the "industrial strength" member of the ABH lineup. Its stainless steel construction is naturally resistant to rust and physical impact, making it ideal for hospitals, schools, and correctional facilities. For specialized security needs, this model also supports electrical modifications like Power Transfers (EPT) and Monitoring, available by custom quote.
| Brand | ABH Mfg |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Hinge Type | Full Mortise, Continuous Hinge |
| Continuous Hinge Height | 83 Inch (7/0 Dr) |
| Continuous Hinge Grade | Heavy Duty |
| Base Material | Stainless Steel |
