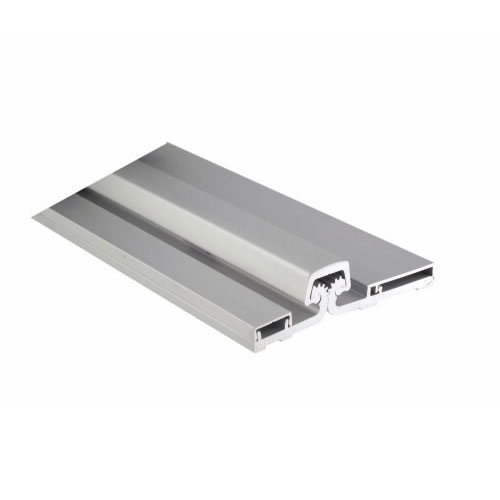

Pemko CFS83 Full-Surface Standard Duty Continuous Geared Hinge - Clear Anodized Finish - 83"
Pemko's standard duty anodized aluminum Full Surface continuous geared hinges are designed mainly for retrofit work, and are applied to the exposed surfaces of the door and frame. Also available in heavy duty models
Features:
Fasteners are No. 12-24 x 7/16" FHUC, Type C, thread forming, no tapping required
Applied to conceal both leaves
Standard model: 10 fasteners required for each leaf
Standard duty hinge. 6" between bearing centers
Certain door and frame conditions may require an extra 1/32"-1/16" clearance. Excessive clearance on fire rated assemblies may violate the requirements for NFPA 80
Special hinge reinforcements are not required. Hollow metal door and frame manufacturers standard is acceptable
| Brand | Pemko |
| Hinge Type | Continuous Hinge, Full Surface |
| Continuous Hinge Height | 83 Inch (7/0 Dr) |
| Continuous Hinge Grade | Standard Duty |
| General - US Finishes | 628 - Aluminum |
| Length | 83 Inch |
