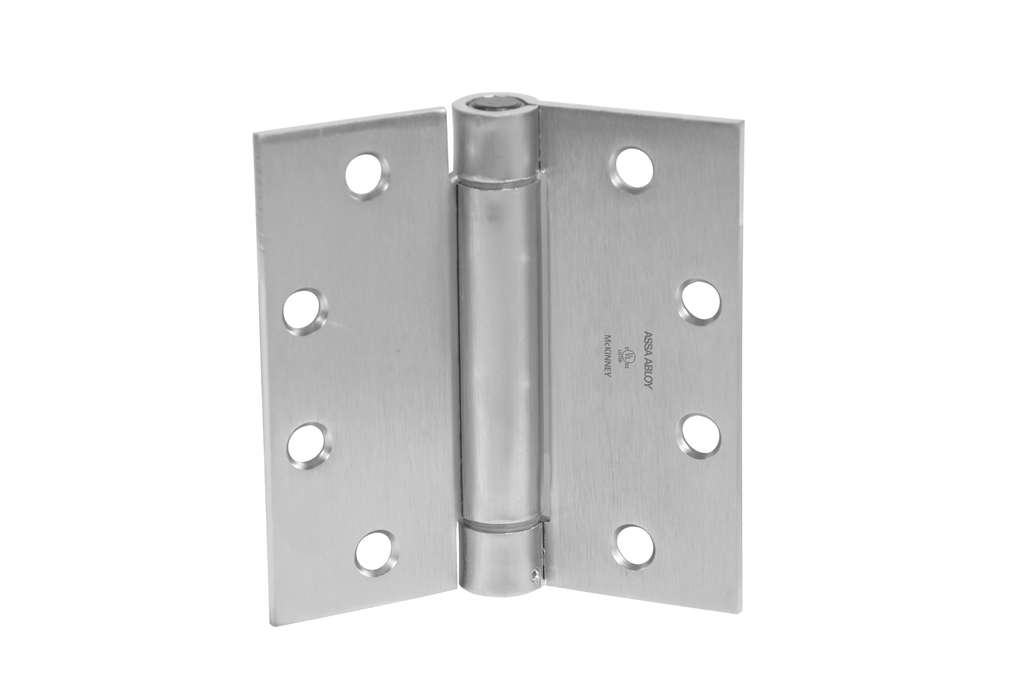

McKinney 1502 4.5" x 4.5" Spring Hinge
McKinney 1502 4-1/2" x 4-1/2" Spring Hinge, Full Mortise, Steel with plated finish. Hinges are priced as Each.
Lead Time: 1-4 Days
McKinney 1502 4-1/2" x 4-1/2" Spring Hinge, Full Mortise, Steel with Plated Finish
Recommended for standard weight, medium frequency doors, the McKinney 1502 Spring Hinge is an ideal alternative to traditional door closers. It's perfect for environments like apartments, hotels, motels, and office buildings where maintaining door security and functionality is crucial.
Spring hinges are designed to replace door closing devices efficiently. Generally, two hinges on the door must be spring hinges to provide adequate closing force, ensuring a smooth and controlled closure every time. The NFPA requires a minimum of two (2) spring hinges on labeled doors, reinforcing their reliability and compliance with safety standards.
This non-handed spring hinge series is adjustable, with tension that can be added or reduced using the provided hex key. Once the proper tension is set, a locking screw offers tamper-resistance, providing peace of mind and durability. The hinges are .134 thick and come with All Wood Screws (1-1/4 x 12) and All Machine Screws (1/2" x 12-24) for secure installation.
Caution: Be aware that certain factors, such as gasketing for smoke or sound protection, wind conditions, unbalanced air pressure, twisted or misaligned frames or doors, door bottoms, or improper latch adjustment, may prevent doors from latching properly. In such cases, additional spring hinges may be required to ensure optimal performance.
By blending functionality with compliance, the McKinney 1502 Spring Hinge stands out as a reliable choice for a wide range of applications, offering both ease of use and robust security features.
Specifications
When considering the McKinney 1502 Spring Hinge for your project, two critical aspects to focus on are its size and weight.
- Size: The hinge measures 4.5 inches by 4.5 inches, offering a balanced square configuration that fits well with medium-duty doors.
- Gauge: Engineered with a gauge of 0.134 inches, this hinge is built for durability without compromising on its sleek profile.
This hinge not only adheres to the dimension requirements but also combines strength with subtlety, making it an ideal choice for many applications. Whether you are replacing old hinges or installing new ones, its size ensures a snug fit, maintaining the door's functionality and aesthetics.
- For door weights up to 115 pounds, use two 1502 4-1/2" height spring hinges and one equivalent size bearing hinge.
- For door weights up to 150 pounds, use three 1502 4-1/2" height spring hinges.
Hinges are sold as Each
The McKinney 1502 Spring Hinge is designed to meet the rigorous standards set forth by the ANSI/BHMA A156.1 specification. This standard ensures that the hinge upholds high quality and performance criteria, providing reliable functionality and durability for various applications.
Compliance and Safety Certifications of the McKinney 1502 Spring Hinge
When it comes to ensuring safety and compliance in construction, the McKinney 1502 Spring Hinge is a reliable choice. This hinge meets essential standards and certifications, offering peace of mind for your fire-rated door applications.
- UL Listing and Fire-Rating: The hinges are UL Listed, which certifies that they meet stringent safety requirements, necessary for applications where fire protection is critical.
- NFPA Requirements: Adhering to the National Fire Protection Association's guidelines, each door labeled for safety must have at least two spring hinges. These hinges are designed to align with these standards, ensuring proper functionality during emergencies.
- UL10c Compliance: Compliance with UL10c means these hinges have passed rigorous fire tests, verifying their performance in maintaining the integrity of fire-rated doors.
- NFPA 80 Compliance: This certification indicates that the hinges meet all necessary specifications for fire door assemblies, ensuring they contribute to life safety.
The McKinney 1502 Spring Hinge stands out by providing these critical safety features, making it a dependable option for any project requiring verified fire-rated door components.
| General - US Finishes | US26D - Satin Chrome or US26 - Polished Chrome or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US10 - Satin Bronze or US10B - Oil Rubbed Bronze or US10BE - Oil Rub Bronze Equal or USP - Prime Painted or D3 - Dark Bronze Powdercoat or D4 - Black Powdercoat |
| Brand | McKinney |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Spring Hinge |
| Spring Hinge Type | Single Acting |
| Base Material | Steel |
| Hinge Corners | Square |
