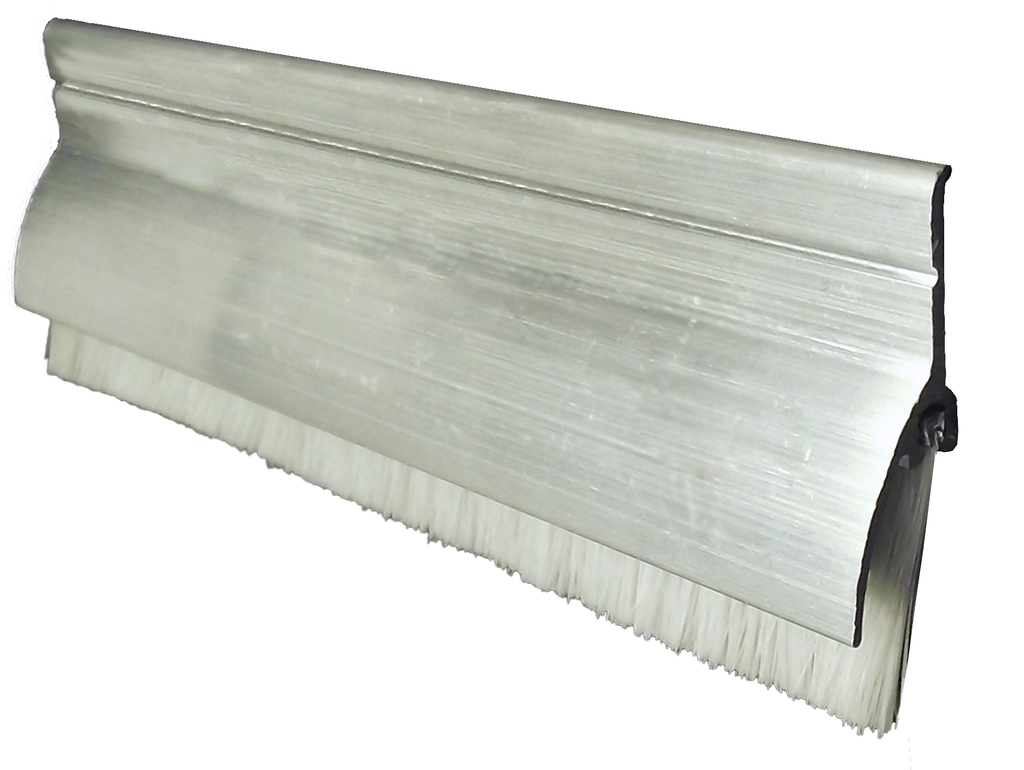

Pemko 345ANB Sill Sweep, Nylon Brush Sweep and Rain Drip
Pemko 345AN Sill Sweep with Gray Nylon Brush Sweep and Rain Drip, Aluminum Finish
36" or 48" length
Pemko 345AN Sill Sweep with Gray Nylon Brush Sweep and Rain Drip, Mill Aluminum Finish
Sill sweeps are installed on the exterior face of a door, on the pull side. For the best results, the application should ensure that the sweep aligns with the bevel of the threshold.
• Sill Sweeps are punched with elongated slotted holes for easy adjustment. Furnished with #6 x 5/8" Pan Head SMS
• All Aluminum brush products are supplied with gray brush (available with black brush upon request). Other finishes supplied with black brush.
• All brush seals consist of densely compressed nylon filaments encased in high quality aluminum retainers
• Replacement Nylon Brush insert is P14100 Black or Gray (BL, GR)
• The rain drip design is perfect for redirecting rain away from the lower part of the door.
• Naturally repels rodents and spiders; can be sprayed with household pest repellent for additional pest control
• Brush remains flexible down to -40°F and has a melting point above 400°F.
• All brush seals greatly reduce the infiltration of light, air, wind, rain, and snow; prevent heat loss; control the penetration of smoke and fumes.
• Sill Sweeps are furnished net length (36" or 48") Field trimming will be required to fit door width. Exact net lengths are available by order
• ANSI: R3A534
Additional Dimensions:
- Width: 9/16"
- Height: 1-15/16"
Please request a quote for Optional Finishes:
D - Dark Bronze Anodized Aluminum
G - Gold Anodized Aluminum
BSP- Black Suede Powder Coat Aluminum
WSP- White Suede Powder Coat Aluminum
PRODUCT TESTING:
• Certified GREENGUARD Gold for Low Chemical Emissions
• Smoke Tested – Tested to UL 1784 and meets the requirements of NFPA 105-2013 for smoke leakage in an opening; allows no more than 3.0 cfm per square foot at 0.10” water column (about 75 Pa).
• Fire Rated – Tested to UL10B Standard Fire Tests and UL10C Positive Pressure Fire Tests of Door Assemblies
• BHMA Certified – Tested for performance with regards to the requirements in:
• ANSI/BHMA A156.22 – Door Gasketing and Edge Seal Systems
• Prop 65 – This product contains a chemical known to the state of California to cause cancer:
• Polyvinyl Chloride (PVC) - Eco-V
| Length | 36 Inch or 48 Inch |
| Brand | Pemko |
| Insert Material | Nylon Brush |
| Material Length | 7/16" |
| Bottom Weatherseal Type | Sill Sweep w/ Rain Drip |
| Fire Rated | Fire Rated |
| Smoke Rated | Smoke Rated |
| Housing Finish | Aluminum |
| Housing Length | 1-1/2" |
