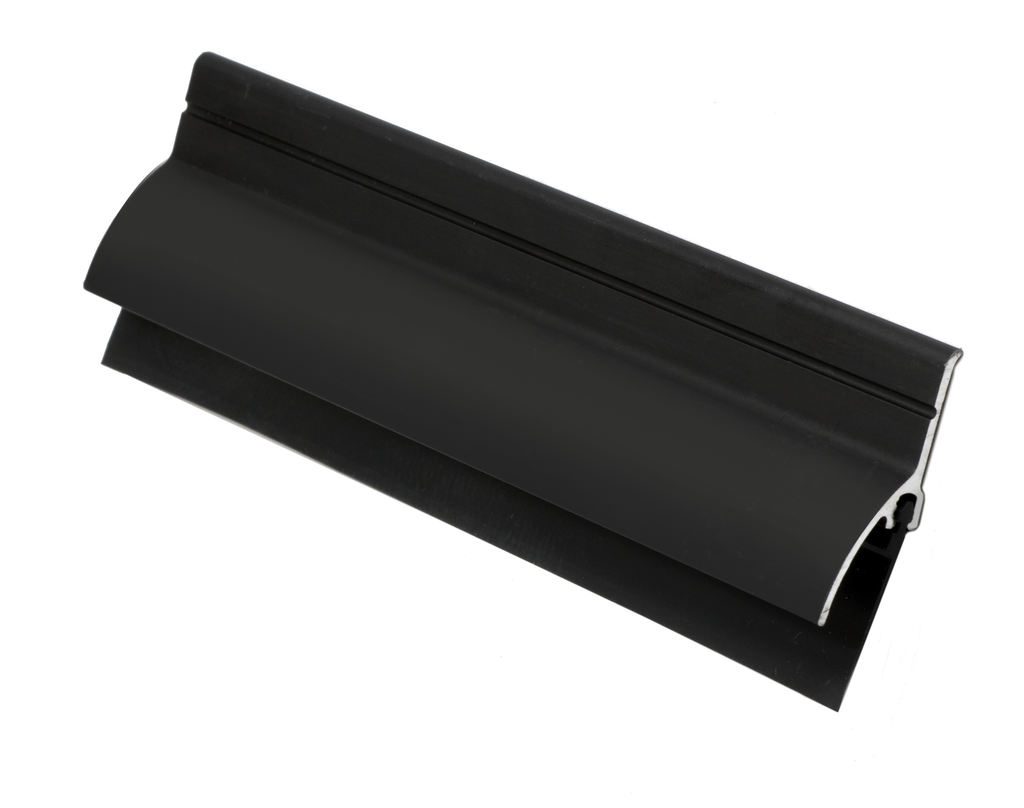

Pemko 345DV Sill Sweep with Black Vinyl Sweep and Rain Drip, Dark Bronze Anodized Finish
Sill sweeps are installed on the exterior face of a door, on the pull side. For the best results, the application should ensure that the sweep aligns with the bevel of the threshold.
• Sill Sweeps are punched with elongated slotted holes for easy adjustment. Furnished with #6 x 5/8" Pan Head SMS
• This sill sweep is supplied with a Black Eco-V ("V") insert - item number EV54 (available in gray, black, or white).
• The vinyl insert includes an extra flap that sits underneath the aluminum housing to keep the vinyl insert securely in place.
• The rain drip design is perfect for redirecting rain away from the lower part of the door.
• The Eco V Vinyl Insert operates effectively within a temperature range of -4° to +122° F. (-20 to 50 Celsius) Temperatures exceeding 122° F will cause it to soften and lose its elasticity.
• Sill Sweeps are furnished net length (36" or 48") Field trimming will be required to fit door width. Exact net lengths are available by order
• Stops airflow from escaping or entering beneath the door
• ANSI: R3D534

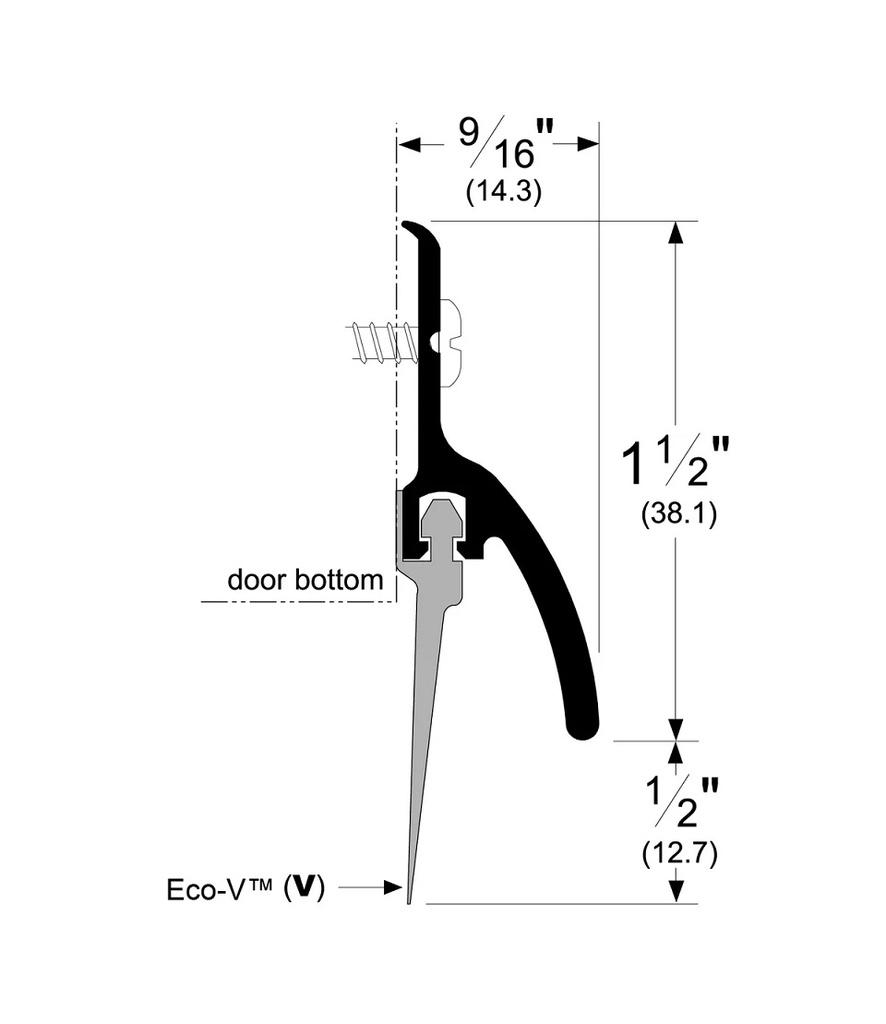

Additional Dimensions:
- Width: 9/16"
- Height: 2"
Please request a quote for Optional Finishes and/or Insert Material:
C - Clear Anodized Aluminum
G - Gold Anodized Aluminum
BSP- Black Suede Powder Coat Aluminum
WSP- White Suede Powder Coat Aluminum
PemkoPrene Insert is also available in lieu of the Eco-V Insert (Black or Gray) ( ANSI: R3G534)
The PemkoPrene (PK) Insert operates within a temperature range of -22° to +122° F (-30 to 50 Celsius) and is capable of withstanding brief periods of higher temperatures.
PRODUCT TESTING:
• Certified GREENGUARD Gold for Low Chemical Emissions
• Smoke Tested – Tested to UL 1784 and meets the requirements of NFPA 105-2013 for smoke leakage in an opening; allows no more than 3.0 cfm per square foot at 0.10” water column (about 75 Pa).
• Fire Rated – Tested to UL10B Standard Fire Tests and UL10C Positive Pressure Fire Tests of Door Assemblies
• BHMA Certified – Tested for performance with regards to the requirements in:
• ANSI/BHMA A156.22 – Door Gasketing and Edge Seal Systems
• Prop 65 – This product contains a chemical known to the state of California to cause cancer:
• Polyvinyl Chloride (PVC) - Eco-V
| Length | 36 Inch or 48 Inch |
| Brand | Pemko |
| Insert Material | Vinyl |
| Bottom Weatherseal Type | Sill Sweep w/ Rain Drip |
| Material Length | 1/2" |
| Housing Length | 1-1/2" |
| Housing Finish | Dark Bronze |
| Fire Rated | Fire Rated |
| Smoke Rated | Smoke Rated |
