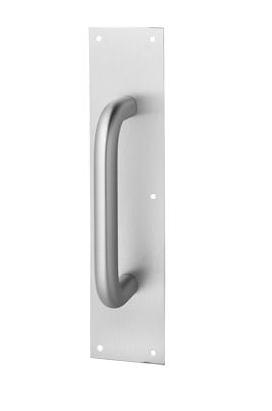

Rockwood 110 x 70B Pull Plate – 3.5″ x 15″ w/ 1″ Round Pull 8″ CTC
Designed for both interior and exterior applications, Rockwood push and pull plates offer versatility and durability. Each plate comes standard with four beveled edges, enhancing the aesthetic appeal while ensuring smooth transitions and safety. The countersunk mounting holes provide a flush finish, maintaining a sleek look against any door surface.
Push Plate Size:
- 3.5" x 15" x .050 thick
Material:
- Stainless Steel
Fastener:
- 1/4 -20 x 2-1/4" Thru Bolt & Finish Washer (standard 1-3/4" door)
Mounting Type:
- Type 1
Pull Handle Dimensions:
- Material Size: 1" dia.
- CTC: 8"
- Overall: 9"
- Base diameter: 1"
- Projection: 3"
- Clearance: 2"
ANSI: A156.6: J405
These features collectively contribute to the robust design and functionality of Rockwood's push and pull plates, making them a reliable choice for a variety of installations.
Mounting Specifications for the Rockwood 110 x 70B Pull Plate
When it comes to installing the Rockwood 110 x 70C Pull Plate, understanding the specific requirements for the fasteners is crucial. Here's what you need to know:
- Fasteners Required:
- #6 x 5/8 OHSMS: This refers to the small fasteners that are typically used for mounting. They are self-tapping, ensuring a firm grip on the surface.
- 1/4-20 x 2-1/4 Through Bolt: This bolt provides secure anchoring through the entire thickness of the door.
- Finish Washer: Complements the through bolt, offering a clean and polished look while distributing the load of the bolt head over a larger area.
Ensure you have these components on hand before beginning the installation to achieve a sturdy and professional finish.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Brand | Rockwood |
| Plate Height | 15" |
| Plate Width | 3-1/2" |
| Pull Handle Overall Length | 9" |
| Center to Center Distance | 8" CTC |
| Pulls Mounting Types | Type 1 - Thru Bolt |
| Diameter | 1" |
| Door Thickness | 1-3/4" Dr Thickness |
