Sargent 68-2454 Chassis Pack — 80 Series Exit Device Chassis Assembly (LHRB)

The Sargent 68-2454 is a chassis assembly (chassis pack) engineered as the core operating mechanism for Sargent 80 Series exit devices. When the push bar is depressed, the push rail transfers that force directly to this chassis, which retracts the latch bolt to allow immediate, code-compliant egress. This replacement or service chassis is handed Left Hand Reverse Bevel (LHRB) and is compatible with the fire-rated 80 Series models 12-8706 and 12-8713. It is the same factory-spec chassis used in original Sargent 80 Series production, making it the correct choice for restoring full exit device functionality without replacing the entire device.

Institutional Grade Features & Benefits

• OEM-Grade Chassis Assembly: Factory-specification internal chassis designed and manufactured by Sargent to match original 80 Series exit device build tolerances.
• Core Egress Mechanism: Receives force from the push rail when the push bar is activated and retracts the latch bolt — the fundamental action that enables panic egress.
• Fire-Rated Device Compatibility: Designed specifically for use with fire-rated 80 Series exit device models, supporting code-compliant installation on fire-rated door assemblies.
• Correct Handing (LHRB): Supplied in Left Hand Reverse Bevel handing — refer to the handing diagram accompanying this listing for door preparation guidance.
• Targeted Service Part: Allows facility managers, door hardware contractors, and locksmiths to restore exit device operation by replacing only the chassis pack, reducing downtime and overall replacement cost.
• 80 Series Platform: Integrates seamlessly within the Sargent 80 Series exit device ecosystem for straightforward service and installation.

Compatible Exit Device Models

The Sargent 68-2454 chassis pack is compatible with the following Sargent 80 Series fire-rated exit device models: 12-8706, 12-8713.

Technical Details

Door Handing Reference

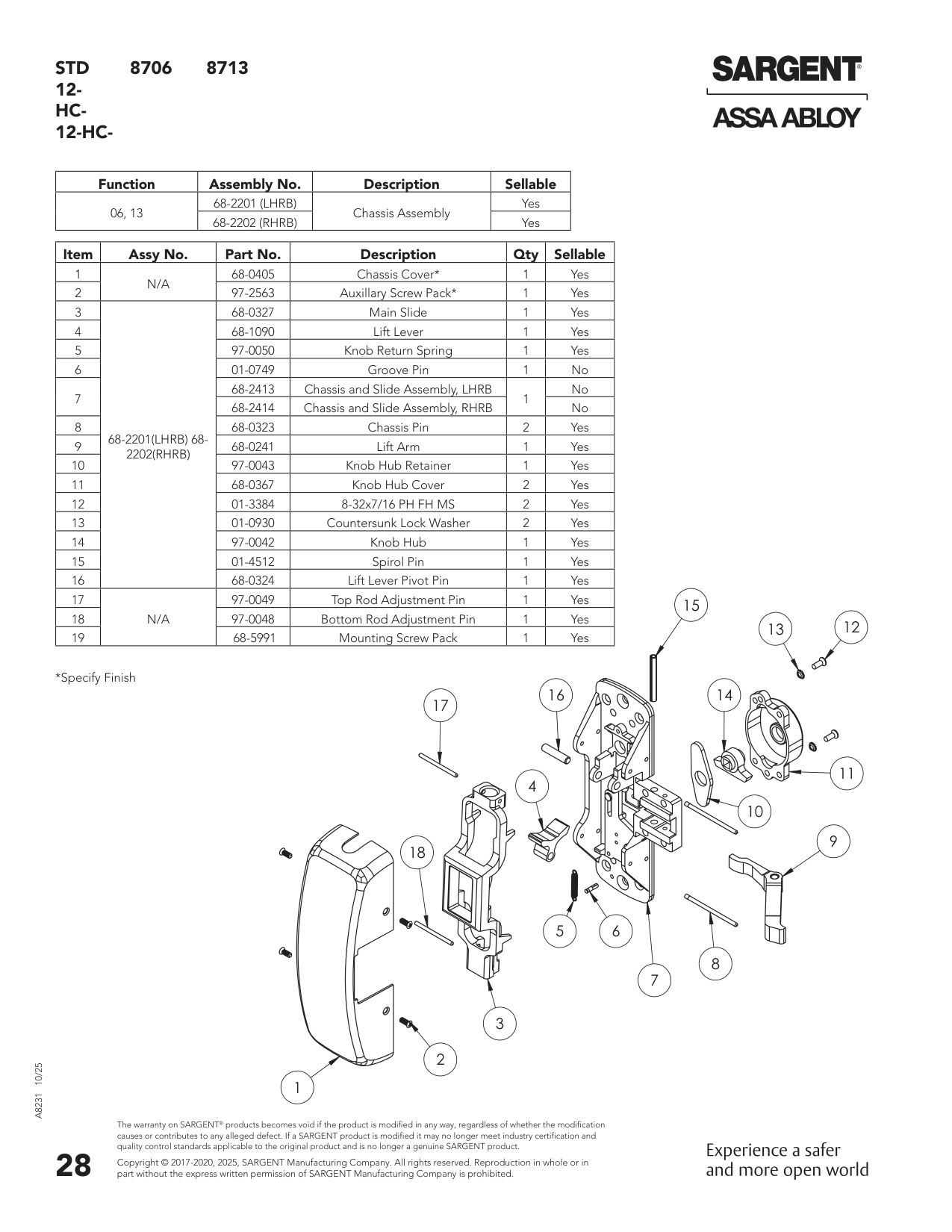

Parts List Illustration
