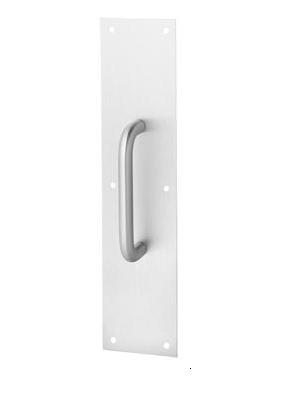

Rockwood Pull Plate 132 x 70B
Push Plate Size: 3-½" x 15" x .050 thick
Material: Bronze or Stainless Steel
Fastener: 1/4 -20 x 2-1/4" Thru Bolt & Finish Washer (standard 1-3/4" door)
Mounting Type: Type 1
Pull Handle Dimensions:
Pull Handle CTC: 5-1/2"
Pull Handle Overall: 6-3/8"
Base diameter: 7/8"
Projection: 1-7/8"
Clearance: 1-3/8"
ANSI: A156.6: J405
*** Pull Plate shown is not intended for Back-to-Back mounting. Please contact us for a quote if this is your application ***
| General - US Finishes | 630 - Satin Stainless Steel/ US32D or US10B - Oil Rubbed Bronze |
| Brand | Rockwood |
| Plate Height | 16" |
| Plate Width | 4" |
| Pull Handle Overall Length | 6-3/4" |
| Center to Center Distance | 6" |
| Pulls Mounting Types | Thru Bolt |
| Diameter | 3/4" |
| Door Thickness | 1-3/4" Dr Thickness |
Rockwood Condensed Catalog 2017.pdf
Download
