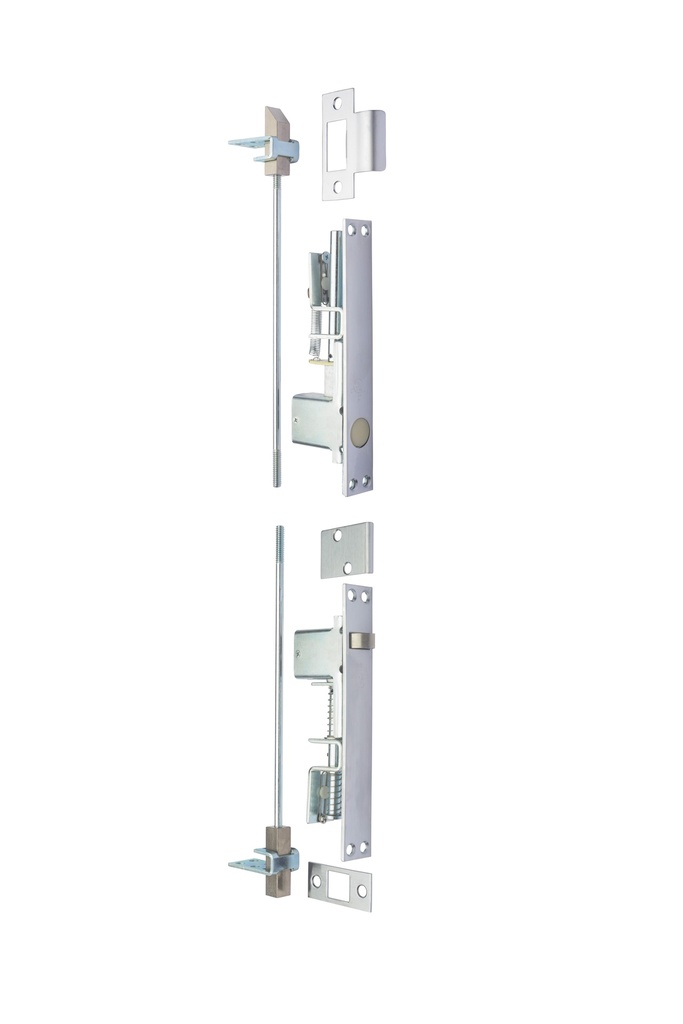

Rockwood 2845 Combination Flush Bolt Set (for metal doors)
Material: Brass, Stainless Steel
FASTENERS:
Top - 8 ea. #8 x 3/4 FH Combo Screws (Note: no plastic anchor required for top only)
Bottom - 18 ea. #8 x 3/4 FH Combo Screws, 2 ea. #6/8 Plastic Anchors
FEATURES
Top Bolt:
Automatically engages when the inactive door closes. When the active door is opened, the inactive door stays latched at the top until the top bolt is released by pressing the plunger button on the bolt face.
Bottom Bolt:
- Non-handed.
- Low (5 lbs. maximum) closing force.
- Fully automatic; opening active door retracts bottom bolt.
- Override feature prevents damage to door or bolt if bolt head is blocked from entering strike.
- Bolt head rod is adjustable up to 1-1/2".
- Thermal lock automatically locks the inactive door under high heat conditions due to fire.
- Options: Can be used with the #570 Dust Proof Strike.
- For Metal Doors Fire Rated up to and Including 3 Hours, up to 4'w x 8'h
- Size: 1" x 6-3/4"
- ANSI A156.3: Type 27
Finishes: US26D is Stock finish. US3, US4, US10, US10B, US10BE, US26, US32D are available by quote.
| General - US Finishes | US26D - Satin Chrome or 630 - Satin Stainless Steel/ US32D or US3 - Polished Brass or US10 - Satin Bronze or US10B - Oil Rubbed Bronze |
| Brand | Rockwood |
| Bolt Type | Flush Bolt - Automatic |
| Door Type | Metal Door |
| Fire Rated | Fire Rated |
