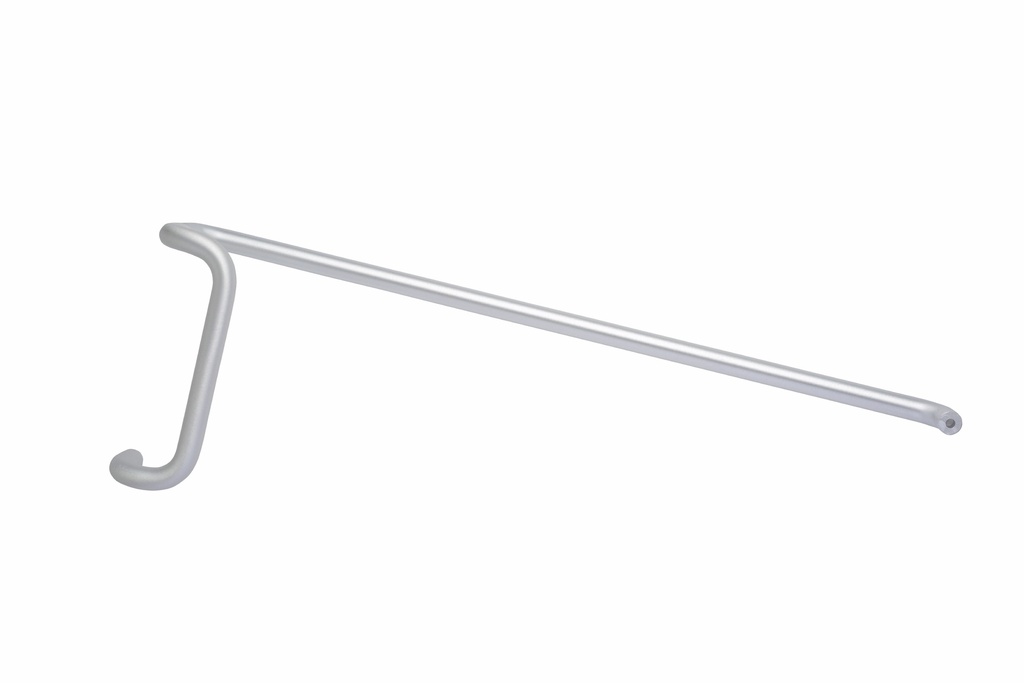

Rockwood BF15747-T3 Offset Push & Pull Bar Set
Specifications
- Push Bar CTC: 33" ( for 36" wide door)
- Pull Handle CTC: 10"
- Mounting Type: Type 3 (T3) - See details below for more information
- End Shape: Bent
- Grip Shape: Round
- Base Material: Aluminum, Brass, Bronze, Stainless Steel
- Door Material: Metal, Wood
- Diameter: 1"
- Push Clearance: 1 3/4"
- Projection: 3 1/2"
- Mounting Information:
- Metal/ Wood/ Aluminum Doors: "T3" - Type 3 - Back to Back and Thru Bolt; Pull Free End = 1, Push Free End = 1, Common End = 5
- Metal: T4 Back to Back and Concealed; Pull Free End = 6, Push Free End = 6, Common End = 5
- Wood: T5 Back to Back and Concealed; Pull Free End = 8,Push Free End = 8, Common End = 5
- Metal and Wood: T1 Back to Back and Decorative Bolt; Pull Free End = 12, Push Free End = 12, Common End = 5
- Glass: T2 Back to Back and Thru Bolt; Pull Free End = 15, Puss Free End = 15, Common End = 13
- T3 is the standard mounting method for Metal and Wood Doors (Fasteners are 1/4-20 Thread Pattern)
| Part Number | Material Size | Pull CTC | Pull Clearance | Push Projection | |
|---|---|---|---|---|---|
BF15647 | 1" dia | 8" | 2 1/2" | 2 3/4" | |
BF157A47 | 1" dia | 9" | 2 1/2" | 2 3/4" | |
BF15747 | 1" dia | 10" | 2 1/2" | 2 3/4" | |
BF15847 | 1" dia | 12" | 2 1/2" | 2 3/4" |
| General - US Finishes | US28 - 628/ Anodized Aluminum or US32D - Satin Stainless Steel/ 630 or 315 - Black Anodized Aluminum |
| Brand | Rockwood |
| Center to Center Distance | 10" CTC |
| Pull Handle Overall Length | 11" |
| Handle Diameter | 1" |
| Pulls Mounting Types | Type 3 - Back-to-Back and Thru Bolt on Free End |
| Thread Pattern | 1/4-20 |
| Door Thickness | 1-3/4" Dr Thickness |
| Push Bar Center to Center | 33" CTC |
