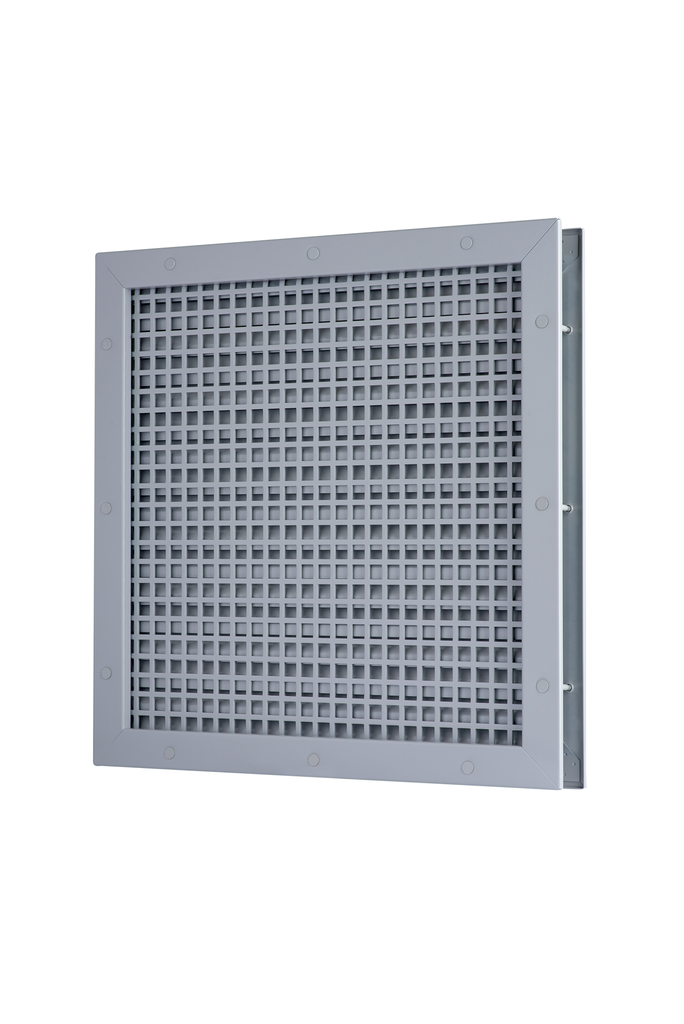

Rockwood LV-WS Windstorm Rated Metal Door Louver
*** Order size is cutout size ***
The LV-WS Windstorm Louver is designed for 1-3/4" exterior doors, offering 50% free airflow. This model is equipped with robust steel blades that enhance durability and features a smooth, burr-free edge. Additionally, the steel mitered frame ensures a quality aesthetic while securely holding the grille assembly in position.
Product Overview
Features
- For use with 1-3/4" exterior doors and provides 50% free air flow
- UL Certified - successfully tested in accordance with ASTM E1886, E1996, TAS 201
- Optional insect screen available
Benefits
- 18 gauge inverted “Y” blades add stiffness and a burr-free exposed edge
- 18 gauge steel mitered frame secures grille assembly in place, providing clean appearance
- Assembly Approved for Use in the State of Florida, Including the High Velocity Hurricane Zone (HVHZ)
- Designed to withstand extreme weather conditions
- Allows for proper airflow, ventilation
- High-quality instruction
Specifications
- Base Material: Galvannealed steel
- Door Type: Wood, Metal
- Standards:
- UL Certification. Successfully tested in accordance with ASTM E1886, E1996, TAS 201
- Large Missile Impact, 350 Ft. Lbs., +/- 70 psf and ASTM E330, TAS 202, TAS 203, +/- 70 psf
Dimensions:
- Minimum width: 12" Maximum width: 34"
- Minimum height: 12" Maximum height: 78"
| Louver Size | 12" wi x 12" hi or 18" wi x 12" hi or 24" wi x 12" hi or 18" wi x 18" hi or 24" wi x 24" hi |
| Finishes Lites and Louvers | GPZ - Gray Primer or BPR - Beige Primer or DKB - Dark Bronze |
| Brand | Rockwood |
| Fire Rated | Fire Rated |
| Window or Louver | Louver |
| Door Thickness | 1-3/4" Dr Thickness |
| Windstorm Certified | Yes |
