Sargent 10XG04 LL Storeroom Lever Lockset
Sargent 10XG04 LL Storeroom Function, Cylindrical Lockset
Lead time: 1-5 Business Days (US26D)
3-4 Weeks (All Other Finishes)
Sargent 28-10XG04 LL Storeroom Function, Cylindrical Lockset
Ideal Applications for This Lockset
This lockset is engineered for demanding environments, ensuring both durability and security. Here are the key applications where it excels:
- Robust Commercial and Institutional Doors: Perfect for both interior and exterior entryways that require added strength.
- Corporate Spaces: A reliable choice for creating secure office environments.
- Educational Institutions: From elementary schools to universities, this lockset provides reliable access control for staff and students alike.
- Healthcare Facilities: Maintain safety and security in hospitals and clinics without compromising on accessibility.
- Manufacturing Centers: Designed to withstand the rigors of industrial use, ensuring long-lasting performance.
Whether you're outfitting a bustling office or a large-scale institution, this lockset meets the demands with impressive resilience.
Function Information:
Freewheeling Locked Lever Option
Available on all locking functions except 10G70 and 10G71
Provides protection from vandalism and added security
Stops in the rose prevent the lever from traveling beyond 60° in either direction
Not available in “J” Lever Design and some options
All Locks and Latches include 4 7/8" ASA Strike - Only. 2 1/4" Full Lip Strikes and 2 3/4" T Strikes are available separately
Specifications:
- Finishes: Choose from BSP Black Suede Powder Coat, US4 (606) Satin Brass, US10 (612) Satin Bronze, US10BE (613e) Dark Oxidized Satin Bronze Equivalent, or US26D (626) Satin Chrome.
- Lock Function: Storeroom type, ensuring secure access control.
- Usage: Engineered for heavy duty, perfect for high-traffic areas.
-
Standards & Compliance:
- ANSI/BHMA Standard: Certified ANSI A156.2 Series 4000 — Grade 1.
- ADA Compliance: Fully meets ADA requirements – A117.1 Accessibility Code.
- Fire Rating: Fire Rated – UL10C – Positive Pressure.
- Cylinder & Keys: Equipped with a 6-pin conventional cylinder, 0-bitted, including 2 keys for convenience.
- Keyway Options: Compatible with Sargent LA Keyway and Schlage C Keyway.
-
Dimensions:
- Backset: 2-3/4".

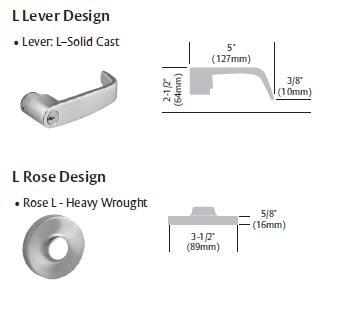

- Lever & Rose Design: L-shaped for a modern aesthetic.
- Strike Design: 808 Curved Lip ANSI Strike, measuring 4-7/8" x 1-1/4".
- Latch: Features a stainless steel deadlocking/guarded latch with a 1/2” throw and face dimensions of 1-1/8" x 2-1/4".
- Door Thickness Compatibility: Ranges from 1-3/4" to 2".
- Minimum Stile Width: 4-1/2".
- Handing: Non-handed design for versatile installation.
- Warranty: Comes with a 10-year limited warranty, ensuring long-lasting performance.
This comprehensive set of specifications ensures the lockset not only fits your door perfectly but also meets all necessary safety and accessibility standards."
Is the Lockset ADA Compliant, and What Accessibility Code Does It Meet?
Yes, the lockset is compliant with the Americans with Disabilities Act (ADA). It adheres to the A117.1 Accessibility Code.
This means the design and functionality of the lockset have been crafted to ensure accessibility for individuals with disabilities, aligning with established ADA guidelines.
Explore Similar Heavy Duty Lever Locks
When searching for robust and reliable lever locks, there are several options available that offer similar functionality. These products are designed with durability and functionality in mind, perfect for a variety of settings:
-
Privacy/Bathroom Lever Locks with Indicators
- Visual Status Indicator: Offers a clear occupancy indication, ensuring privacy.
- Multiple Finishes Available: Customize your finish to match your decor.
-
Classroom Lever Locksets
- Heavy Duty Design: Ideal for educational institutions.
- Prep Options: Includes options for Schlage and SFIC preparations.
-
Entrance or Office Lever Locks with Indicators
- Visual Status Indicator: Provides a real-time status of the lock.
- Durable Construction: Suitable for high-traffic areas.
-
Storeroom Lever Locks with Indicators
- Secure and Durable: Features a visual status indicator.
- Multiple Finishes Available: Adaptable to various environments.
These lock options are well-suited for settings requiring enhanced security and clear status in both commercial and residential environments. With a variety of functions and preparation styles, you can find a lock that fits your specific needs while maintaining high standards of security and durability.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Freewheeling Option | Regular Lever or FW Prefix - Freewheeling Locked Lever |
| Sargent Cylinder Options | KD - LA Kwy Keyed Different or SC - Schlage C Kwy 0 Bitted or 60 prefix - Sargent LFIC Prep Less Core or 70 prefix - Best/Falcon SFIC Prep Less Core or LC - Less Sgt Cylinder |
| Brand | Sargent |
| ANSI Cyl Lock Function | F86 - Storeroom |
| Trim Design | LL |
| Series | Sargent - 10X Line |
