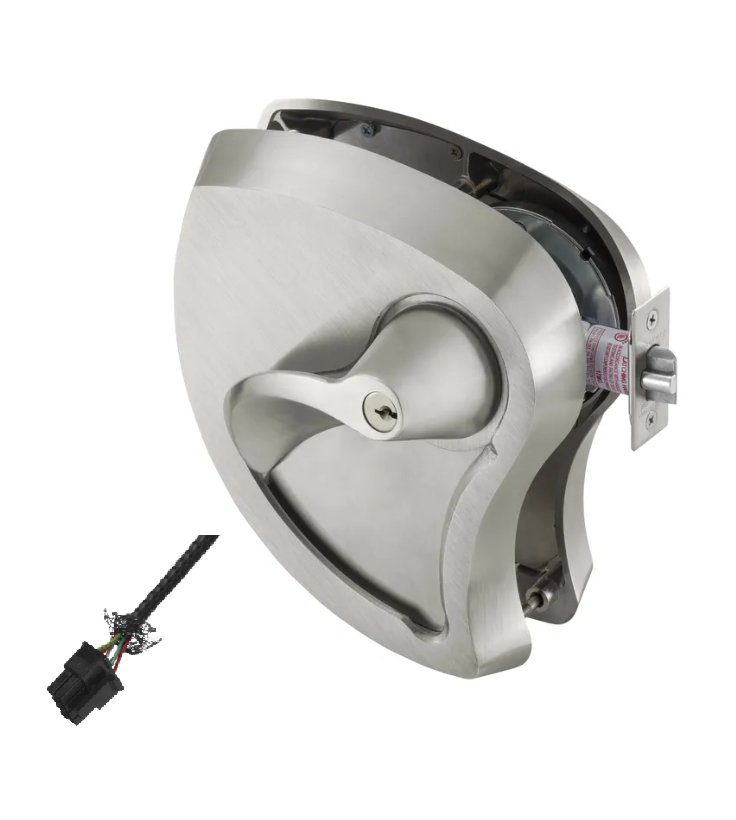

Sargent 28-10XG70 BHW Electric Lockset Fail Safe, Cylindrical Lockset, Grade 1 Heavy Duty
Function Information:
- Patent Pending design
- Non-Contact Switch
- Bidirectional lever rotation
- Non-handed design
- Internal switch offers N/O & N/C
- Modular wire harness with ElectroLynx® 8-pin connector (QC8)
All Locks and Latches include 4 7/8" ASA Strike - Only. 2 1/4" Full Lip Strikes and 2 3/4" T Strikes are available separately
| Sargent Cylinder Options | KD - LA Kwy Keyed Different or 60 prefix - Sargent LFIC Prep Less Core or 70 prefix - Best/Falcon SFIC Prep Less Core or LC - Less Sgt Cylinder |
| Door Handing | LH or RH |
| Backset | 2-3/4" Backset or 3 3/4" Backset or 5" Backset |
| Brand | Sargent |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Voltage | 12 VDC, 24 VDC |

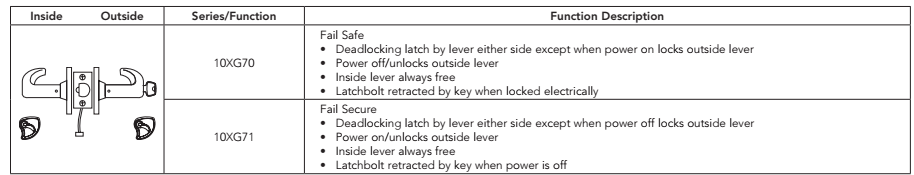

| ANSI Cyl Lock Function | Fail Safe |

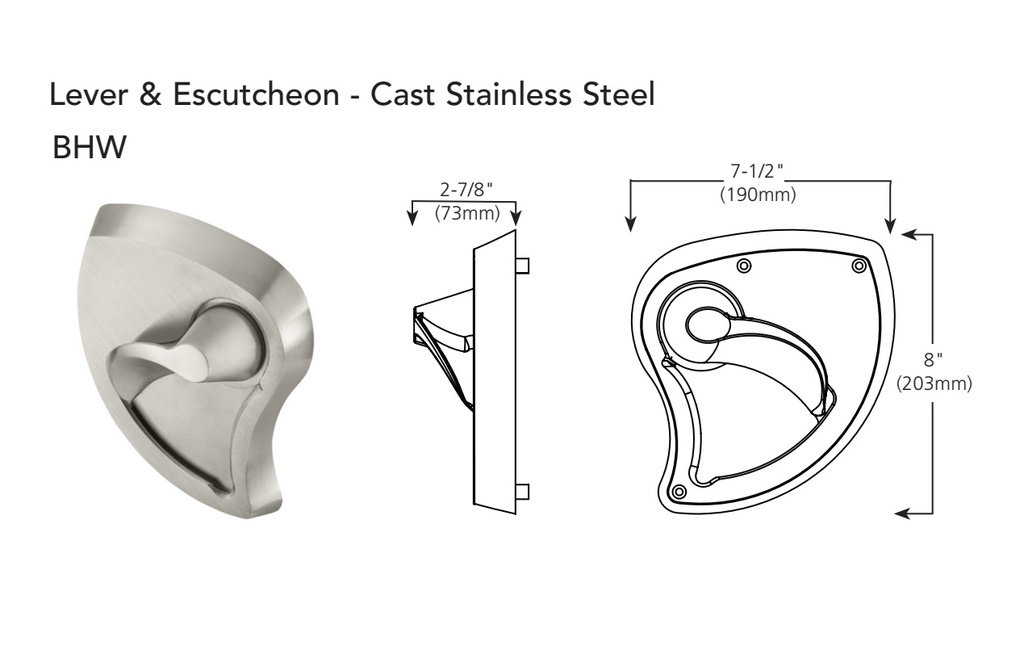

| Trim Design | BHW |
| Series | Sargent - 10X Line |
