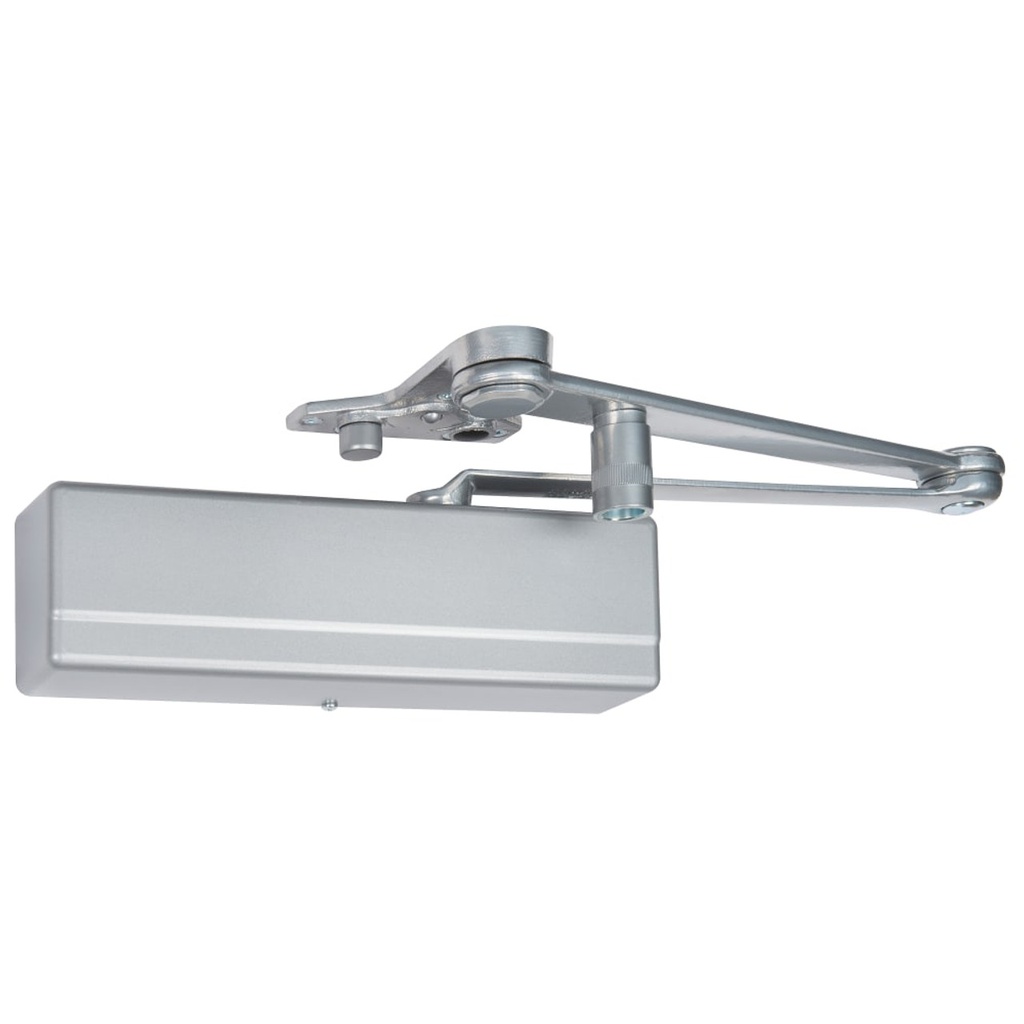

Sargent 1431-PSH Closer, Heavy Duty Parallel Arm Positive Stop & Hold Arm Mounting
Features
Certified ANSI/BHMA A156.4 Grade 1
Conforms to UL10C and UBC for positive pressure fire test
UL Listed and cUL Listed to Canadian Safety Standards listed for use on fire doors
25 year limited warranty
User friendly versatile mounting applications permit standard, top jamb, parallel and track installations
Self sticking templates supplied for most applications
Adjustable spring power allows 1431 closers a size range of 1 through 6. They are adjusted to size 3 before leaving the factory
One door closer body for all applications. All 1431 are non-handed.
Meets ADA requirements in all applications, except Push Side Track application (except track)
High impact non-corrosive plastic covers with two machine screws standard, metal covers and lead lined are optional
All weather fluid allows closer to operate effectively in extreme temperatures without readjustment
1-1/2" diameter piston for superior door control
Standard pressure relief valves for both opening and closing cycles protect the door & frame from damage caused by abuse
Retrofits existing SARGENT 1230/1231 Series Closer installations
Heavy Duty Construction
Heat treated full rack and pinion for high strength & wear resistance
Heavy duty one piece high silicon content aluminum alloy body provides corrosion resistance, superior strength and wear resistance
1/2" arm engagement over a 7/16 square spindle ensures a wear-resistant tight joint Fasteners
Machine Screws and self tapping screws provided for closer and arm
In addition, wood screws supplied when installed on wood doors with through bolts Valves
Separate brass low sensitivity control valves offer ability to separately regulate door speed, latching, backcheck and optional delayed action
All valves are captured to prevent accidental removal, adjustable with an 1/8" Allen wrench
Adjustable backcheck protects the door and hardware from damage during the opening cycle
Adjustable delayed action (optional) permits easy access for physically impaired individuals
Full Complement of Arm Types
Standard and parallel arms
Push and pull track arms
Heavy duty forged steel arms are finely finished and interchangeable between SARGENT 281 and 1431, and 351 Series.
The cold formed arms (RO/RP9) are unique to the 1431 series and not interchangeable with other SARGENT closers.
Innovation
SARGENT’s revolutionary MicroShield® available. This antimicrobial silver-based finish coating permanently suppresses the growth of bacteria, algae, fungus, mold and mildew. EPA and NSF approved and FDA listed.
Positive Stop & Hold from 85 degrees to 110 degrees. 4 7/8" minimum top rail required without drop bracket
3 offered finishes: EN = Aluminum Enamel, EB = Bronze Enamel, EAB = Brass Enamel
| General - US Finishes | EN - Aluminum Enamel or EAB - Spray Gold or EB - Bronze Enamel |
| Brand | Sargent |
| Series | Sargent - 1430 Series |
| Closer Arm Type | HD Positive Stop & Hold |
| Hold Open | Hold Open |
| Closer Body Hole Pattern | 11 1/8" x 1" |
