Sargent 422 CTB2 Cam Action Door Closer with Non Hold Open Track Arm, Push or Pull Side Application

Price:

$ 659.19
  2. Shop
  3. Door Closers
  4. Sargent 422 CTB2 Cam Action Door Closer with Non Hold Open Track Arm, Push or Pull Side Application
Sargent 1431 PHTB Door Closer with PUSH Side Hold Open Track Arm with Bumper
Sargent 1431 PHTB Door Closer with PUSH Side Hold Open Track Arm with Bumper
$ 700.73
$ 700.73
Sargent 422 CTHB2 Cam Action Door Closer with Hold Open Track Arm, Push or Pull Side Application
Sargent 422 CTHB2 Cam Action Door Closer with Hold Open Track Arm, Push or Pull Side Application
$ 689.55
$ 689.55

Sargent 422 CTB2 Cam Action Door Closer with Non Hold Open Track Arm, Push or Pull Side Application

https://www.doorwaysplus.com/web/image/product.template/32467/image_1920?unique=e4ecced

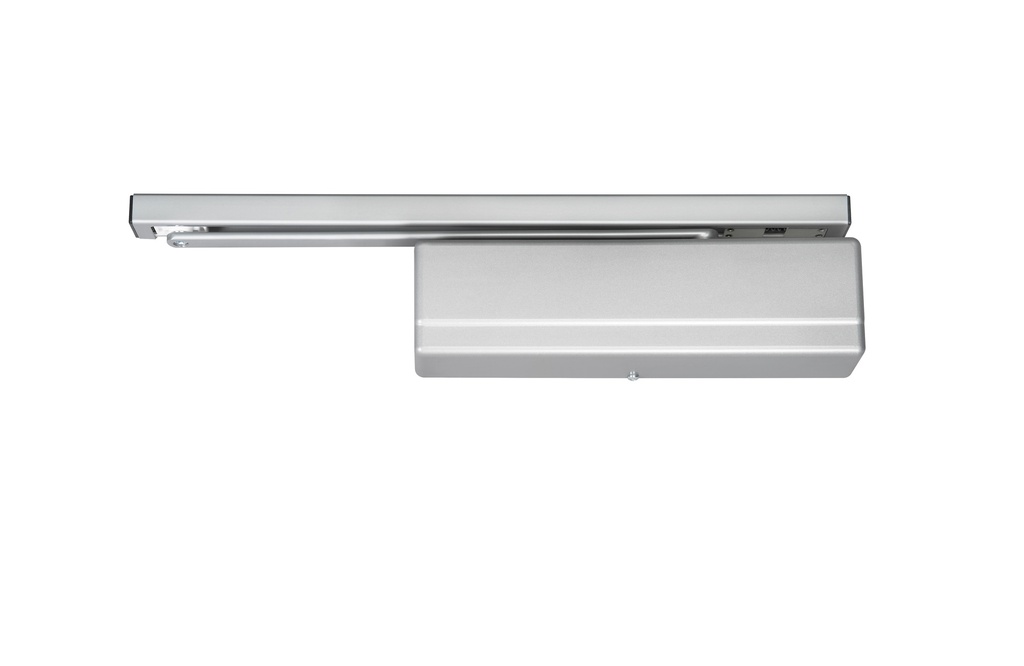

Sargent 422 CTB2 Cam Action Door Closer with Non Hold Open Track Arm
Lead Time: 3-4 Weeks

$ 659.19 659.19 USD $ 659.19

$ 659.19

Not Available For Sale

  • Brand
  • General - US Finishes
  • Series
  • Closer Arm Type
  • Hold Open
  • Closer Body Hole Pattern

This combination does not exist.

Contact Us
Share :

Sargent 422 CTB2 Cam Action Door Closer with Non Hold Open Track Arm, Push or Pull Side Application

The 422 cam action door closer is engineered to facilitate effortless door operation while ensuring sufficient force for secure closure. This model features a single closer and track assembly capable of accommodating up to four installation configurations, complemented by a distinctive arm that streamlines the installation process. It is particularly well-suited for environments where both security and accessibility are paramount.

Specifications
  • Arm Material: Forged steel
  • Body Material: Aluminum alloy
  • Closer Type: Cam Action
  • Warranty: 30-year limited warranty

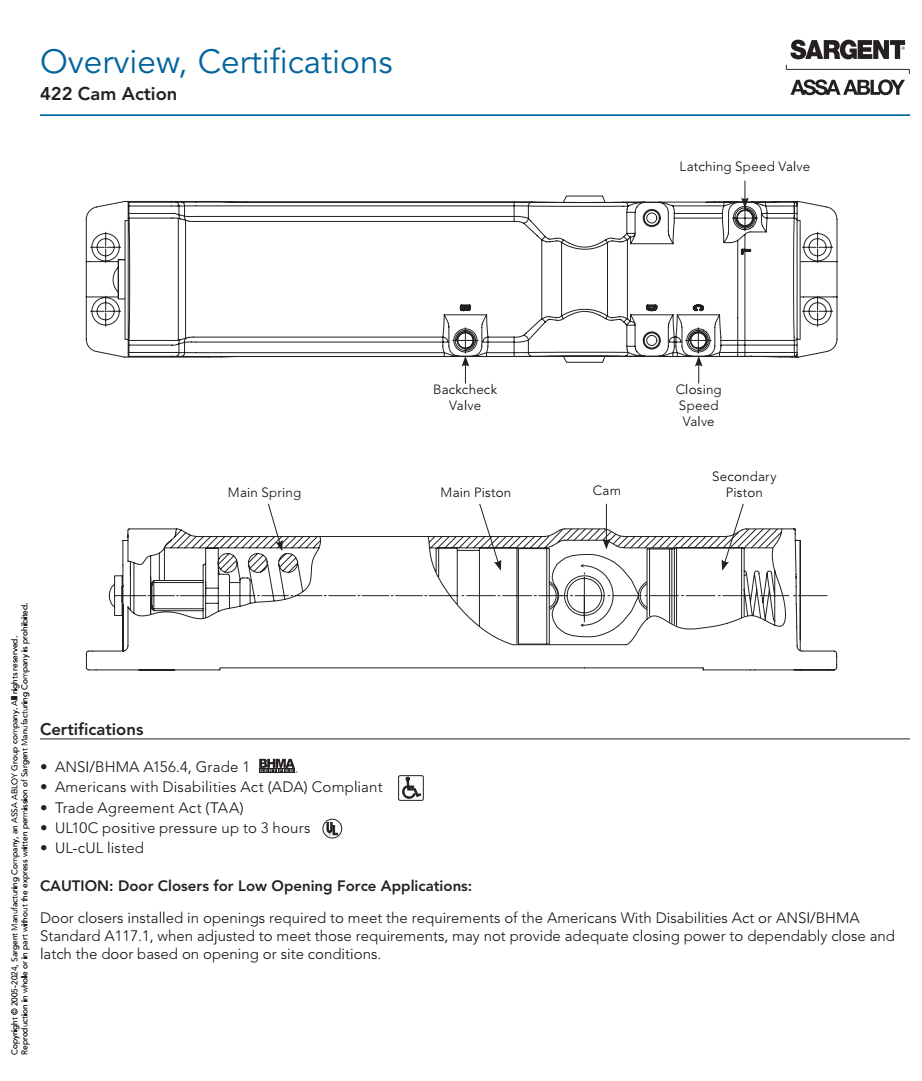

Certifications
  • ANSI/BHMA A156.4, Grade 1
  • Americans with Disabilities Act (ADA) Compliant
  • ICC A117.1 Compliant
  • UL-cUL Fire-Rated Up to 3 Hours

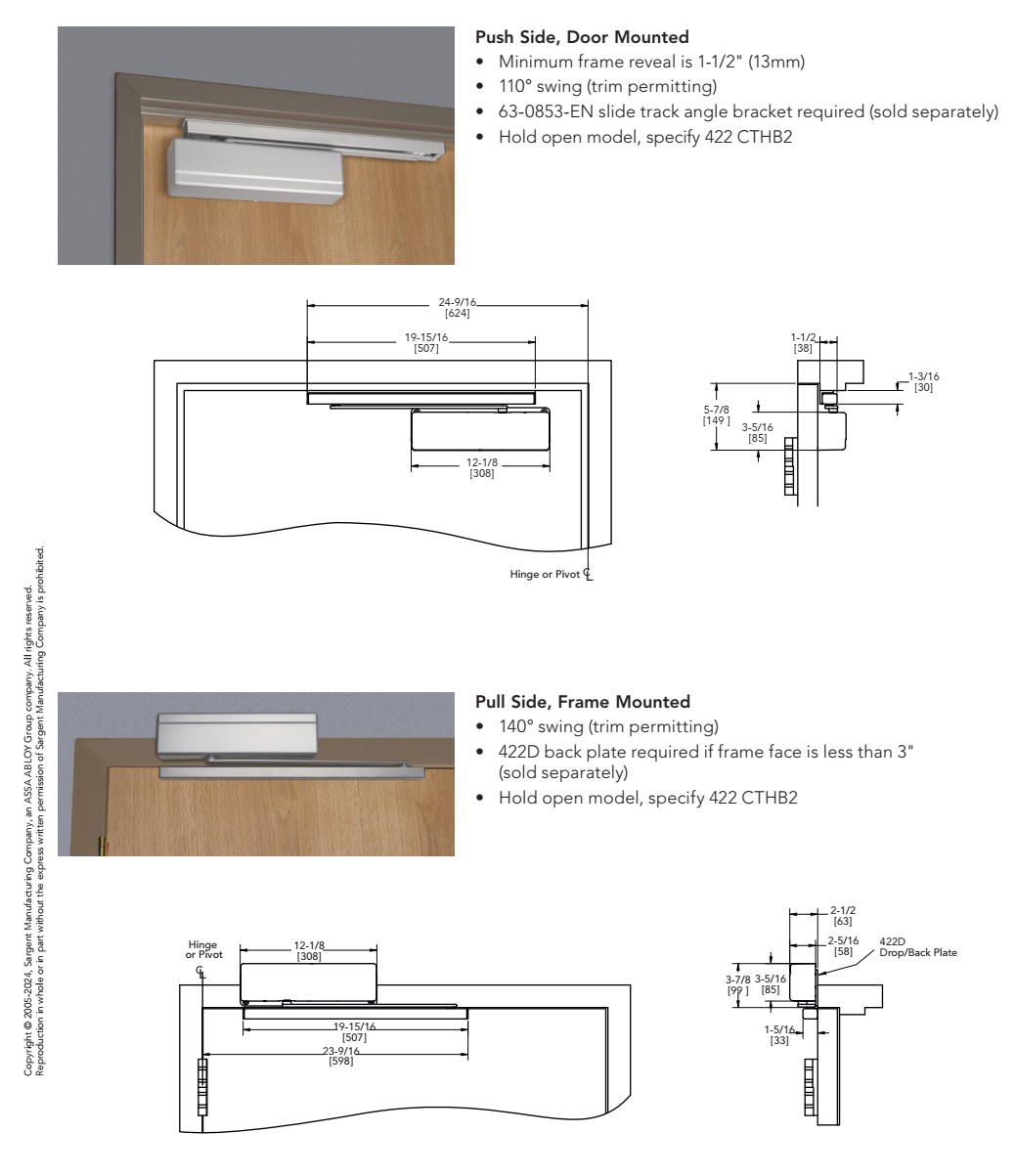

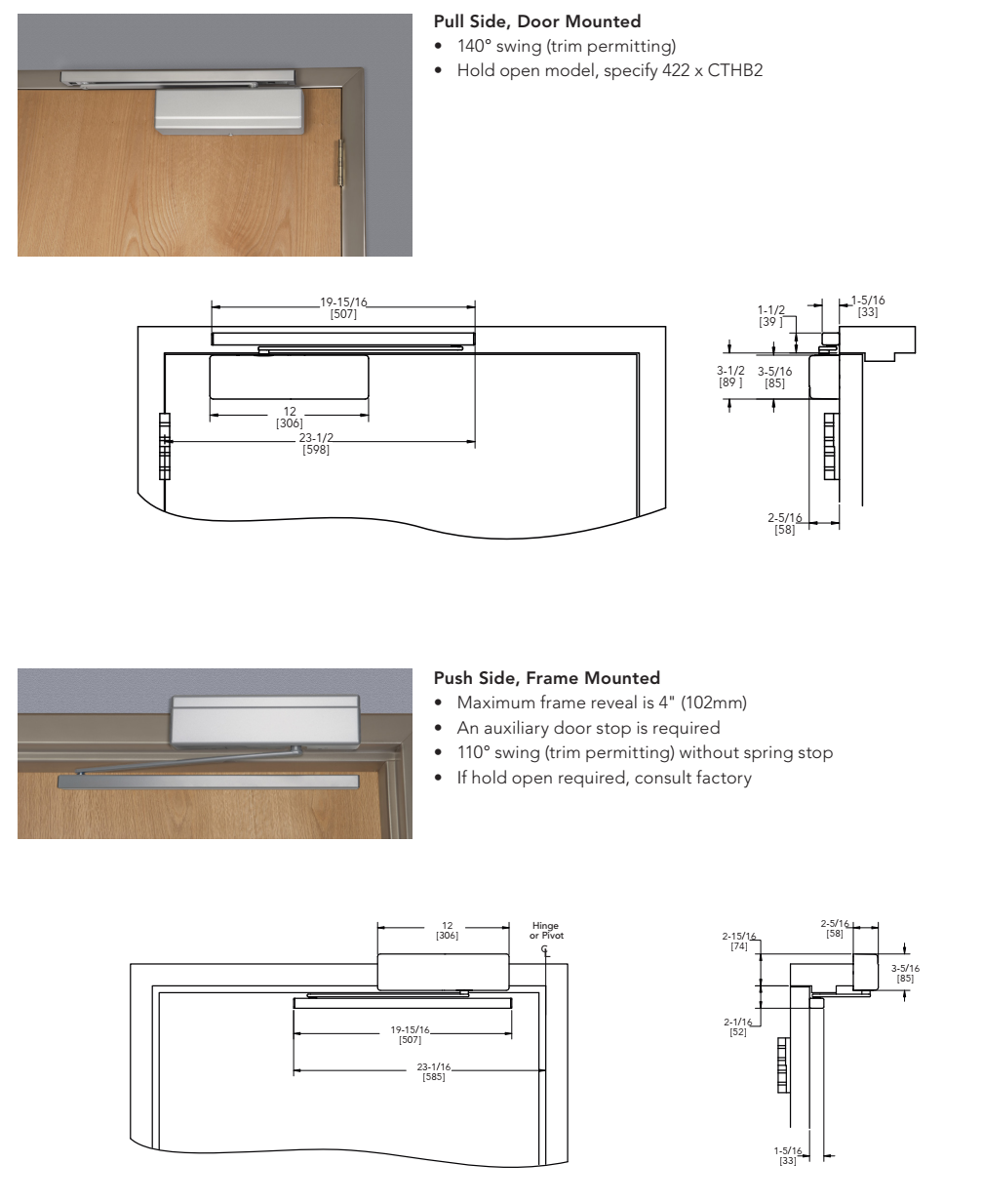

Sargent 422 Series Cam Action Door Closer Standard Applications

Sargent 422 Series Cam Action Door Closer Standard Applications

Features
  • Cast aluminum body
  • Adjustable spring size 1 through 6
  • Door weight: 250 lbs.
  • Non-handed
  • Unique spline arm
  • Push and pull side installation, door or frame mounted
  • Adjustable closing force
  • Adjustable closing and latching speed
  • Backcheck standard
  • Suitable for exterior and interior doors
  • Recommended maximum interior door width 54" (137)
  • Standard opening range: pull side = 140°, push side = 110°
  • 30-year limited warranty

Benefits
  • One model - four mounting options
  • Easy to open
  • Reliable closing
  • Forward facing valves
  • High efficiency
  • Spline arm offers multiple indexing options to accommodate standard and special applications
  • 1/2" vertical adjustment

Sargent 422 Series Cam Action Closer General Information

General - US Finishes BSP - Black Suede Power Coat or EN - Aluminum Enamel or EAB - Spray Gold or EB - Bronze Enamel or US10BE - Oil Rub Bronze Equal
Brand Sargent
Series Sargent - 422 Series
Closer Arm Type Track Arm
Hold Open Non-Hold Open
Closer Body Hole Pattern 11 1/8" x 1"
SARGENT 422 Series Cam Action Door Closer Pull Side Application, Door Mounted Template.pdf
Download
SARGENT 422 Series Cam Action Door Closer Push Side Application Frame Mounted Template.pdf
Download
SARGENT 422 Series Cam Action Door Closers Non-Hold Open and Hold Open Arm Push & Pull Side Door and Frame Mounted Adjustable Size 1-6 Installation Instructions.pdf
Download
Sargent 422 Series Closer Catalog.pdf
Download
