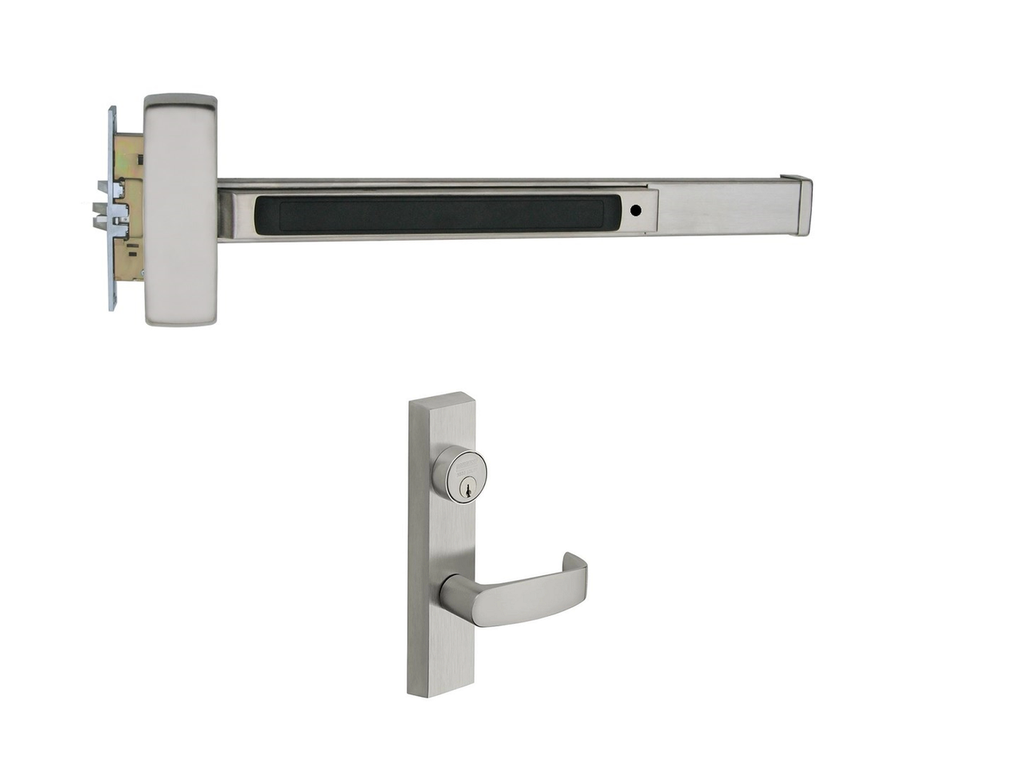

Sargent 8913 ETL Mortise Exit Device w/ Classroom Exit Trim
The Sargent 8913 ETL is a heavy-duty Grade 1 Mortise Exit Device designed for maximum security and life safety on standard-width stile wood or metal doors. Combining the strength of a mortise lock with the ease of a panic bar, the 8913 features a guarded latchbolt for enhanced resistance against tampering. This unit comes equipped with the ETL Classroom Lever Trim, a high-security function that allows the outside lever to be locked or unlocked by key, making it the perfect solution for educational facilities and commercial offices.
Superior Mortise Strength and Security
Engineered to exceed ANSI/BHMA A156.3 Grade 1 standards, the Sargent 8900 Series provides a robust single-point latching system concealed within the door. The 3/4" anti-friction stainless steel latchbolt ensures smooth operation and a secure hold. When ordered with the 12-prefix, this device is UL10C Fire Rated, providing essential protection for fire-labeled openings while maintaining UL305 Panic Listed egress requirements.
Advanced Integration and Customization
The Sargent 8913 is highly versatile and can be tailored to meet the specific needs of any facility. It supports a wide range of electric options, including Remote Latch Retraction (56-), Request-to-Exit (55-), and Latchbolt Monitoring (53-). For a streamlined and reliable electrical installation, using the QC12 ElectroLynx connector on the associated hinge is highly recommended. With four available rail sizes (E, F, J, and G), this device can accommodate door widths from 24" to 48" with precision factory cutting.
Key Product Features
- Mortise Lock Security: High-strength concealed guarded latching for superior protection.
- Classroom Function Trim: Includes the ETL Lever, allowing the key to control outside access.
- Fire & Panic Certified: UL Listed for both fire-rated (12-) and panic hardware applications.
- Grade 1 Reliability: ANSI/BHMA A156.3 certified for high-traffic, high-abuse environments.
- Anti-Friction Latch: 3/4" throw brass nickel-plated latchbolt for smooth, secure operation.
- Modern Scalability: Compatible with Electric Dogging, Alarms, and Electroguard Delayed Egress.
Technical Specifications
| Feature | Details |
| Device Type | Mortise Exit Device |
| Trim Style | ETL Classroom Lever |
| Handing | LHRB or RHRB (Required upon order) |
| Door Thickness | 1-3/4" Minimum (Up to 2-1/4" available) |
| Minimum Stile | 4-1/2" Standard |
| Standard Strike | C908 Black Nylon Coated (ANSI Prep) |
| Mounting | Wood/Machine screws standard; Thru bolts available |
Ordering & Handing Information
Door handing (LHRB or RHRB) must be specified at the time of order to ensure the mortise lock and trim are properly handed. For doors requiring a UL fire label, please ensure the 12-prefix is selected. For specialized environments, such as those requiring hurricane resistance, please inquire about the WS8900 series.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or US10BE - Oil Rub Bronze Equal |
| Exit Device Fire Rating | Non Rated Door or Fire Rated Door |
| Door Opening Width | 36 Inches or 42 Inches or 48 Inches |
| Door Handing | RHR or LHR |
| Sargent Exit Device Prefixes | 43 - Flush End Cap or 53 - Latchbolt Monitor Switch – available with 55, 56, 58, AL options) or 54 - Outside Lever Monitoring (not available with 04/10 function) or 55 - Signal Switch in Rail or 56 - Motorized Electric Latch Retraction (Minimum door width for narrow & wide stile is 28") or 58 - Electric Dogging or 59 - Electroguard Delay Egress (Not available with 16-, 53-, 55-, 56-, 58- Options) or HC - Hurricane Code (not available with 16, 28, 63, 66 functions) or WS - Windstorm Certified |
| Brand | Sargent |
| Series | Sargent - 80 Series, Sargent - 700 ET Series |
| Exit Device Type | Mortise Exit Device |
| Exit Device Trim Function | Classroom |
