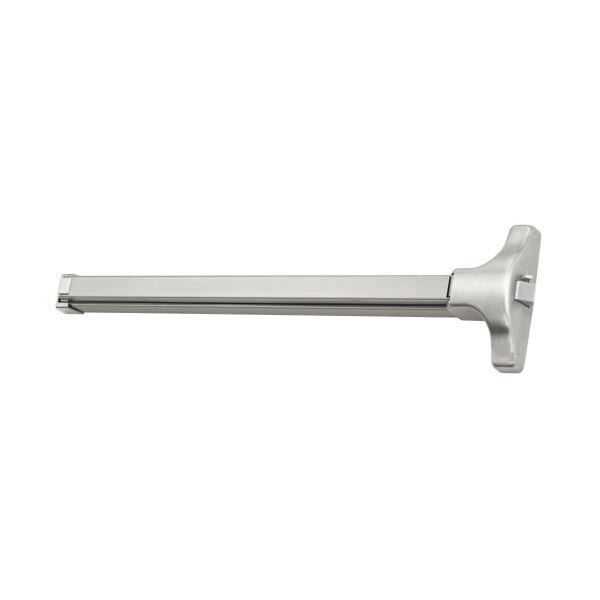

Accentra 2100F Rim Exit Device, Fire Rated up to 3 hours, Exit Only
The 2100(F) is a rim exit device to be used with single doors or pairs of doors constructed of metal, wood or composite materials. The 2100(F) can be paired with a wide variety of trims to meet many applications.- When "F" is added to the 2100 part number it stands for a 3 hour Fire-Rated Exit Device
Applications:
- Single swing doors
- Pairs of doors (mullion required)
- Metal, wood or composite door materials
Certification/compliance:
- UL/cUL Listed: FVSR/FVSR7 - Panic hardware- GXHX/GXHX7 - Fire exit hardware (F) (4' x 8' single, 8' x 8' pairs, 3 hr.)- ZHEM - Latching hardware- ZHLA - Windstorm rated assemblies- ANSI/BHMA Certified: A156.3 Type 1, Grade 1
Features:
- Designed for wide stile doors
- Non-handed for easy installation
- Steel interlock bracket maintains door-to-mullion relationship in fire-labeled devices
- Deadlocking pullman latchbolt positively engages roller strike
- Available certified hurricane resistant (refer to local codes). Specify 2100(F)WS
Specifications:
- Door Opening Width: 3' and 4' door widths
- Door Thickness: 1-3/4" (44mm) standard
- Minimum Stile Width: 4-1/2" (114mm)
- Projection: 2-1/2" (64mm) active, 1-3/4" (44mm) depressed
- Latchbolt: 3/4" (19mm) deadlocking stainless steel pullman-type
- Strike: 757F, 793 optional (double door application, panic only)
- Fasteners: Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts
- supplied standard for fire exit hardware.
- Trims: 121NL cylinder only, 210F series utility trim, 440F series rose trim, 580F series rose trim with escutcheon plate, 620F series escutcheon trim, 630F series pull/thumbpiece trim.
- Dogging: Hex key dogging supplied standard on panic devices
- Finishes: 689 Spray Aluminum or 630 (US32D - Stainless Steel)
- Options: Cylinder dogging, shim kit #223, sex nuts and bolts, MicroShield®
- Warranty: 3-year limited
| General - US Finishes | 630 - Satin Stainless Steel/ US32D or 689 - Spray Alumimun |
| Door Opening Width | 36 Inches or 48 Inches |
| Brand | Accentra (formally Yale Security) |
| Exit Device Type | Rim Exit Device |
| Series | Accentra - 2100 Series |
| Fire Rated | Fire Rated |
