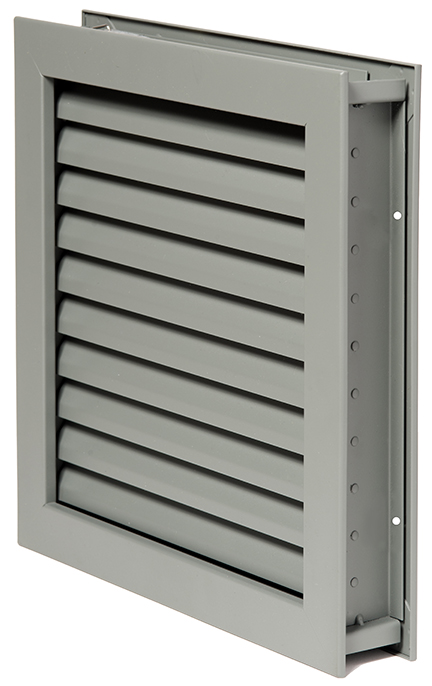

NGP L-1900 FLDL Fire Rated Steel Door Louver
**** Order size is cutout size ****
Product Features
- For 1-3/4" Thick Doors up to 90 Minutes
- Blades Close When Activated By Fire/Heat
- 18 Ga. Cold Rolled Steel Frame
- 18 Ga. Cold Rolled Steel Adjustable “Z” Blades
- Mitered Corners Secured With Reinforcing Clips
- Stainless Steel Spring

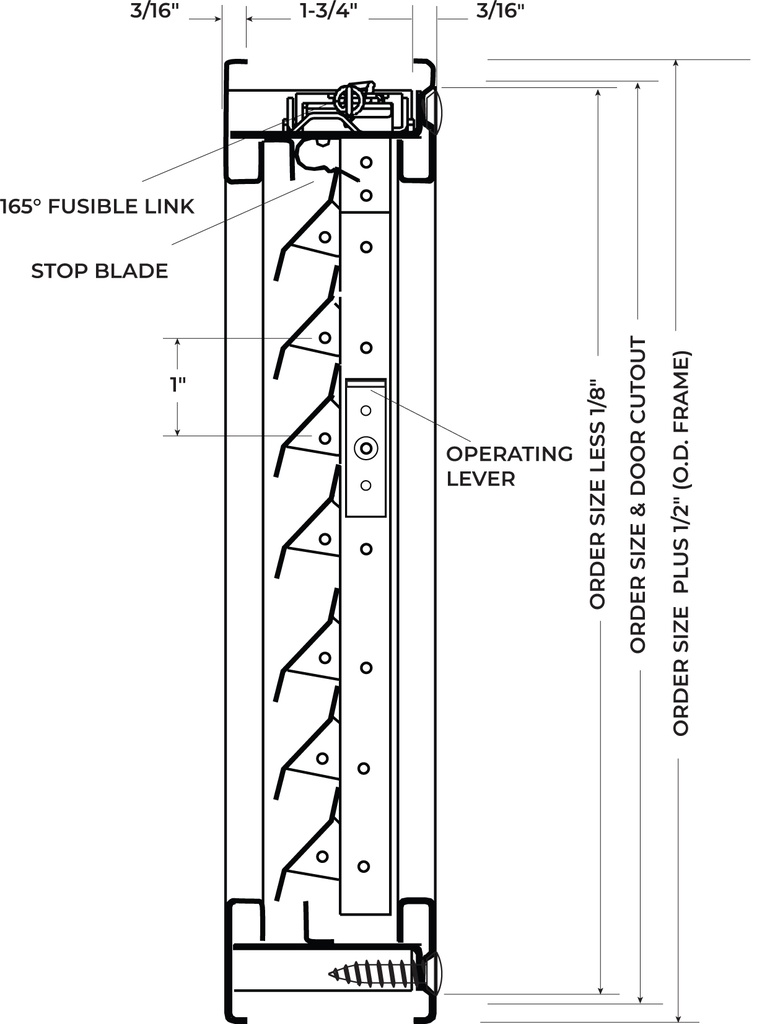

- 165ºF Fusible Link
- #8 X 3/4" Phillips Head SMS
- Free Area 40%
- Gray Primer (GPZ) Powder Coat Finish
- Available in Whole Inch Increments: Minimum Size: 10" x 6", Maximum Size: 24" x 30"
Standards
- CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors and Wood fire doors rated up to 90 minutes.
- POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors and Wood fire doors rated up to 90 minutes.
| Louver Size | 12" wi x 12" hi or 18" wi x 12" hi or 24" wi x 12" hi or 18" wi x 18" hi or 24" wi x 18" hi or 24" wi x 24" hi |
| Finishes Lites and Louvers | GPZ - Gray Primer |
| Brand | National Guard Products |
| Fire Rated | Fire Rated |
