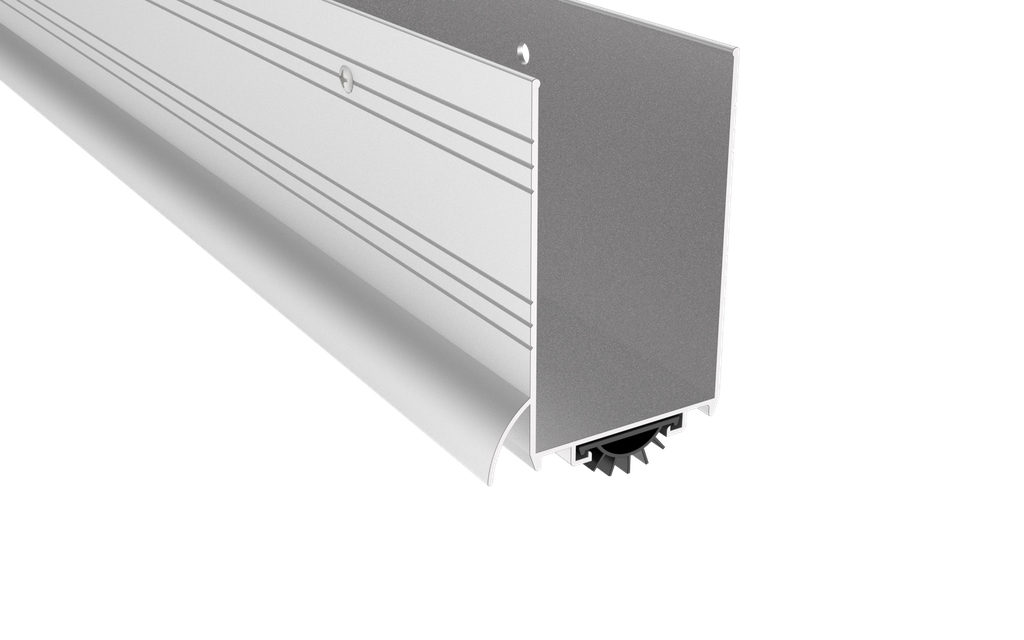

Pemko 2211AV Extended Door Bottom with Vinyl insert and Rain Drip
Pemko 2211AV Extended Door Bottom Shoe with Rain Drip, 3" High, Alum Finish,
36 inch or 48 inch length, 1 3/4" Doors, Gray Eco-V Vinyl Insert
Pemko 2211AV Extended Door Bottom Shoe with Rain Drip, 3" High - Aluminum Finish
A Combination door shoe, rain drip and kick plate with Eco-V Gray Vinyl Insert

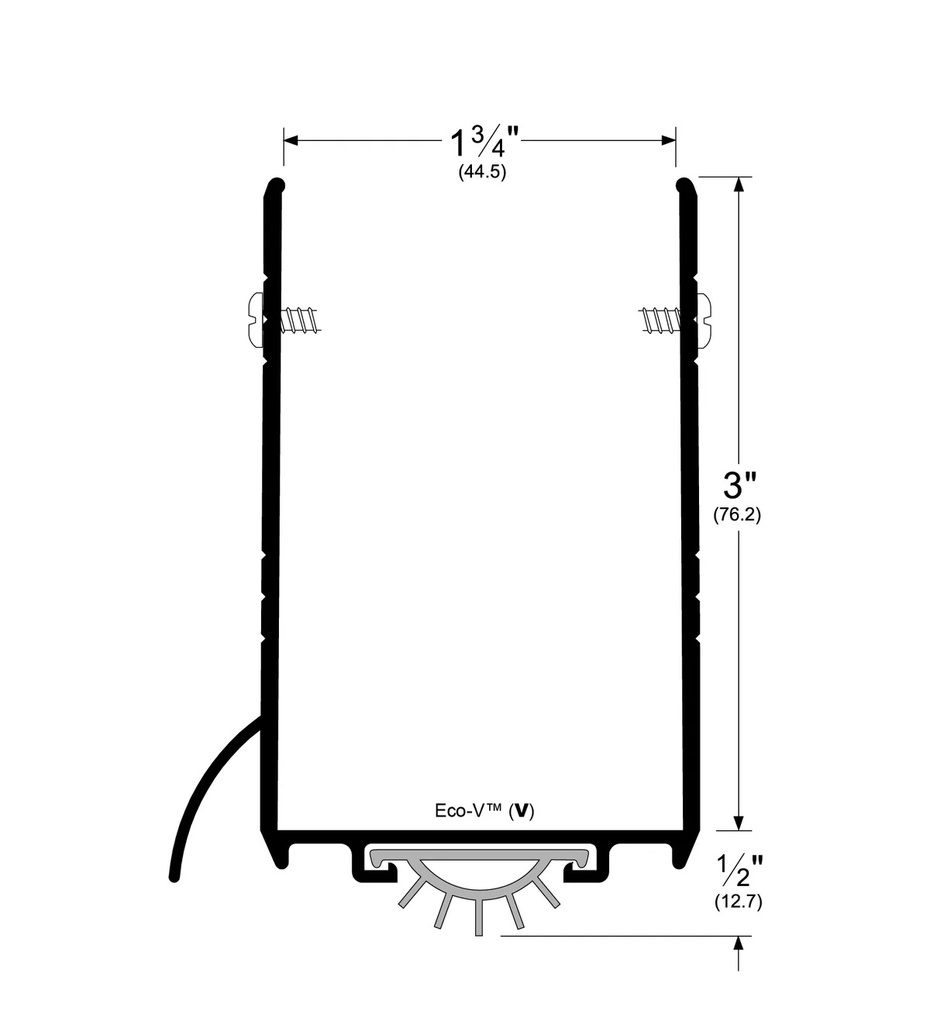

The 2211 Series U-Shaped door Shoe with rain drip is a combination kick plate providing added protection to your door. It seals gaps up to .5" at the bottom of the door opening, and can protect against traffic abuse and restoring badly rusted or damaged doors. The U shaped casing extends up the face and back of the door 3", for doors 1.75" in thickness. It features Eco-V Vinyl Fingered insert for proper sealing and flexibility.
• Door Bottom Channels are punched with elongated slotted holes for easy adjustment. Furnished with #6 x 5/8" Pan Head SMS
• The rain drip design is perfect for redirecting rain away from the lower part of the door.
• To ensure proper operation, the bottom of the door should maintain a 1/2" clearance from the floor or threshold.
• This door shoe is supplied with a Eco-V insert - item number EV9 (standard finish is gray, black available by special order)
• Door Bottoms are furnished net length (36" or 48") Field trimming will be required to fit door width. Exact net lengths are available by order
• The Eco V Vinyl Insert operates effectively within a temperature range of -4° to +122° F. (-20 to 50 Celsius) Temperatures exceeding 122° F will cause it to soften and lose its elasticity.
• Stops airflow from escaping or entering beneath the door.
• ANSI: R3D514
Please request a quote for Optional Finishes and/or Insert Material:
D - Dark Bronze Anodized Aluminum
BSP- Black Suede Powder Coat Aluminum
WSP- White Suede Powder Coat Aluminum
PemkoPrene Insert is also available in lieu of the Eco-V Insert (Black or Gray) (
ANSI: R3G514)
The PemkoPrene (PK) Insert operates within a temperature range of -22° to +122° F (-30 to 50 Celsius) and is capable of withstanding brief periods of higher temperatures.
PRODUCT TESTING:
• Certified GREENGUARD Gold for Low Chemical Emissions
• Smoke Tested – Tested to UL 1784 and meets the requirements of NFPA 105-2013 for smoke leakage in an opening; allows no more than 3.0 cfm per square foot at 0.10” water column (about 75 Pa).
• Fire Rated – Tested to UL10B Standard Fire Tests and UL10C Positive Pressure Fire Tests of Door Assemblies
• BHMA Certified – Tested for performance with regards to the requirements in:
• ANSI/BHMA A156.22 – Door Gasketing and Edge Seal Systems
• Prop 65 – This product contains a chemical known to the state of California to cause cancer:
• Polyvinyl Chloride (PVC) - Eco-V
| Length | 36 Inch or 48 Inch |
| Brand | Pemko |
| Insert Material | Vinyl |
| Material Length | 1/2" |
| Bottom Weatherseal Type | Door Bottom w/ Rain Drip |
| Housing Length | 3" |
| Housing Finish | Aluminum |
| Fire Rated | Fire Rated |
| Smoke Rated | Smoke Rated |
