Accentra 7100F Grade-1 Fire-Rated Rim Exit Device - Yale

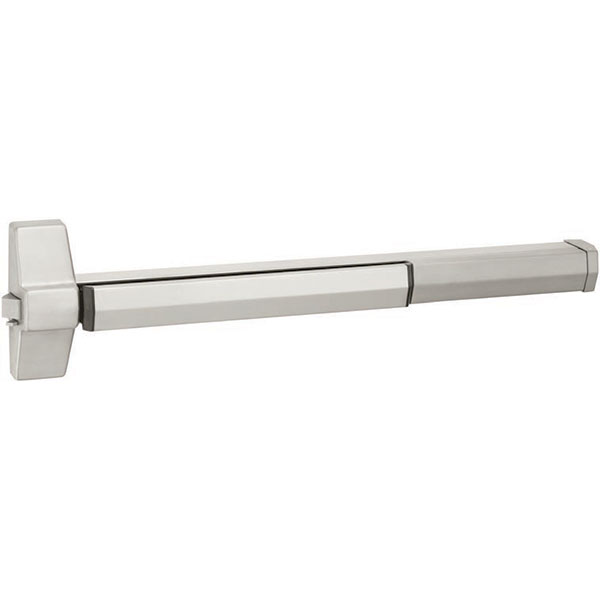

Accentra 7100F Fire Rated Rim Exit Device, 36" Door, Exit Only, US32D (Stainless Steel)

The 7100(F) is a rim exit device to be used with single doors or pairs of doors constructed of metal, wood or composite materials. Designed for application in high-use areas, the 7100(F) comes in a variety of finishes and can be combined with a variety of trims to match any desired style.

- When "F" is added to the 7100 part number it stands for a 3 hour Fire-Rated Exit Device

UL/cUL Listed

• FVSR/FVSR7
• Panic hardware- GXHX/GXHX7
• Fire exit hardware (F) (4' x 8' single, 8' x 8' pairs, 3 hr.)
• ANSI/BHMA Certified: A156.3 Type 1, Grade 1

Features

• Designed for wide stile doors
• 3/4" throw deadlocking stainless steel pullman latchbolt
• Electroplated ferrous components provide corrosion resistance
• Available in double cylinder function (handing must be specified)

Applications

• Non-handed for easy installation
• Single swing doors
• Pairs of doors with removable mullions
• Metal, wood or composite door materials

Specifications

Door Opening Width:

• 36 for 30" - 36" (76cm - 91cm) doors
• 48 for 36" - 48" (91cm - 122cm) doors
• Door Thickness: 1-3/4" (44mm) standard.
• Minimum Stile Width: 4-1/2" (114mm)
• Projection: 3-1/4" (83mm) active, 2-3/4" (70mm) dogged
• Latchbolt: 3/4" (19mm) deadlocking stainless steel pullman-type
• Strike: 757F, 793 optional (double door application, panic only)
• Fasteners: Machine screws and wood door fasteners standard for panic hardware. Sex nuts and bolts supplied standard for fire exit hardware.
• Trims: 620F series escutcheon trim, 630F series pull/thumbpiece trim, 680F series offset pull trim, 540F series rose trim, 121NL cylinder only.
• Dogging: Dogging is not supplied on fire rated exit devices
• Warranty: 5-year limited
