Hager BB1168 NRP 4.5" x 4.5" Heavy Weight Ball Bearing Hinge

Price:

$ 31.50
  2. Shop
  3. Commercial Hinges
  4. Hager BB1168 NRP 4.5" x 4.5" Heavy Weight Ball Bearing Hinge
Hager BB1168 4.5" x 4.5" Heavy Weight 5 Knuckle Ball Bearing Hinge
Hager BB1168 4.5" x 4.5" Heavy Weight 5 Knuckle Ball Bearing Hinge
$ 28.63
$ 28.63
Hager BB1168 5" x 4.5" Heavy Weight Ball Bearing Hinge
Hager BB1168 5" x 4.5" Heavy Weight Ball Bearing Hinge
$ 36.91
$ 36.91

Hager BB1168 NRP 4.5" x 4.5" Heavy Weight Ball Bearing Hinge

https://www.doorwaysplus.com/web/image/product.template/795/image_1920?unique=4a1f6d5

Hager BB1168 NRP 4 1/2 x 4 1/2 Ball Bearing Hinge, 5 Knuckle, Steel

$ 31.50 31.5 USD $ 31.50

$ 31.50

Not Available For Sale

  • General - US Finishes
  • Brand
  • Hinge Height
  • Hinge Width
  • Hinge Grade/Thickness
  • Hinge Type
  • Hinge Options
  • Hinge Options
  • Base Material
  • Hinge Corners

This combination does not exist.

Contact Us
Share :

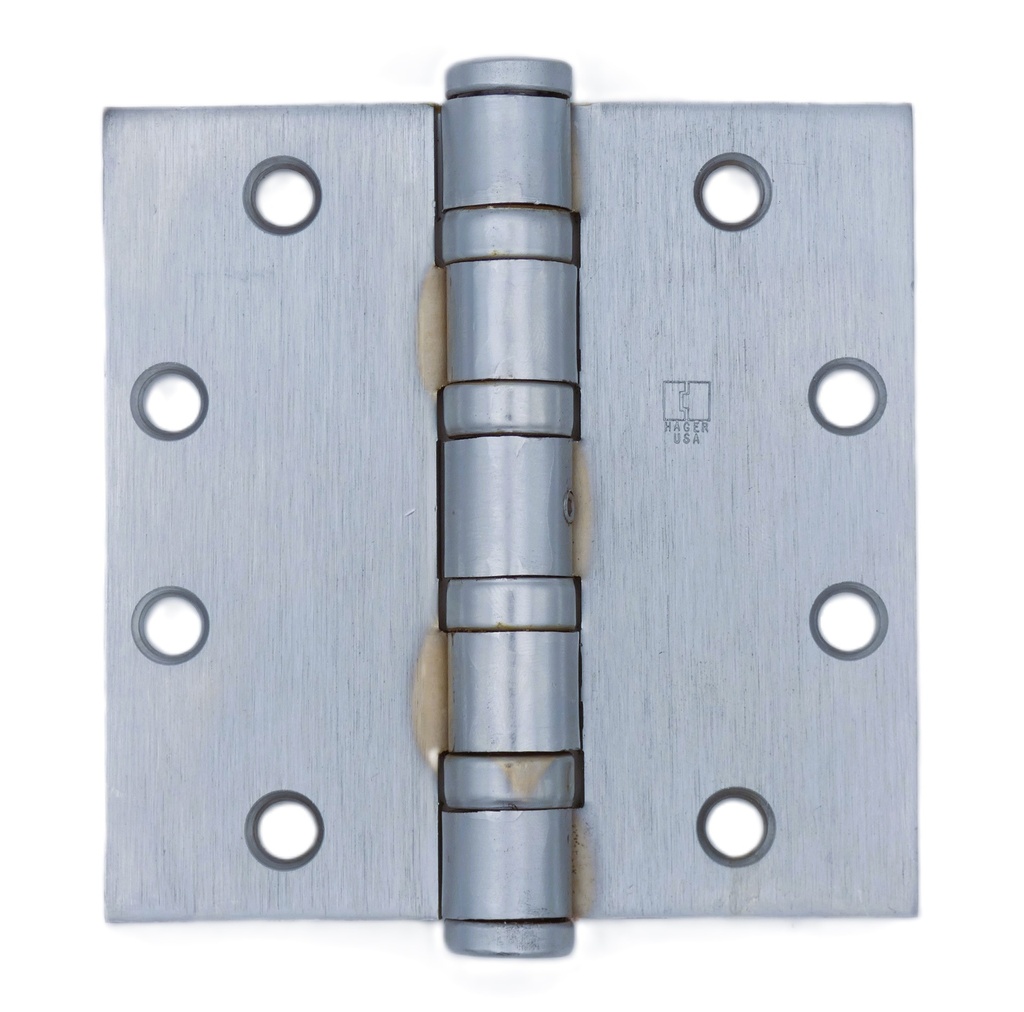

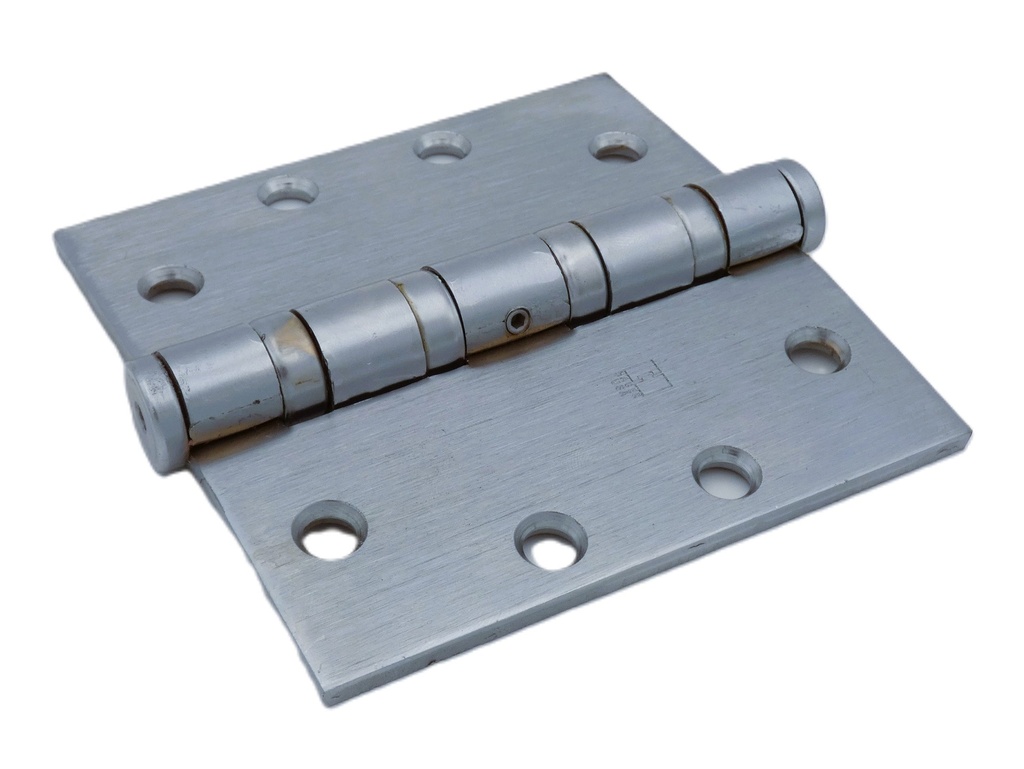

Hager BB1168 NRP 4.5" x 4.5" Heavy Weight 5 Knuckle Ball Bearing Hinge, Steel with Plated Finish

Installation Details:

  • Furnished standard with all wood screws (1-1/4" x 12 FPHW) and all machine screws (1/2" 12-24 FPHM)
  • Hinges are .180 thickness, For 1 3/4" door thickness. For use on heavy weight doors or doors requiring high frequency service.

Material: Steel with Steel pin

Standards Compliance:

  • ANSI A8112. Meets industry standards ANSI/BHMA A156.1, ensuring top-tier quality and reliability in performance. These standards, set by the American National Standards Institute (ANSI) and the Builders Hardware Manufacturers Association (BHMA), confirm that the hinge is designed to meet rigorous benchmarks for durability and functionality. By adhering to these recognized standards, you can trust that this product delivers exceptional performance, making it a reliable choice for your needs.

Hinge Corners: Square

Features of the Hager BB1168 NRP 4.5″ x 4.5″ Heavy Weight Ball Bearing Hinge

If you're in need of a robust and reliable hinge for heavy-weight doors, the Hager BB1168 NRP might be the perfect solution. Here's a breakdown of its standout features:

  • Heavy Weight Capacity: With a .180 gauge design, it's built to withstand the rigorous demands of heavy doors, providing longevity and stability.
  • Ball Bearings: Equipped with four ball bearings, this hinge offers smooth operation even during high-frequency use, making it ideal for environments with frequent door movement.
  • Full Mortise Configuration: The hinge is designed for full mortise installation, allowing it to seamlessly integrate with the door for a clean look and effective function.
  • Fire Rated: It meets UL standards and is certified for use on fire-rated door assemblies for up to three hours, complying with NFPA80 requirements to ensure safety in emergency situations.
  • Variety of Finishes: Available in multiple finishes including Black, Prime Coat, Bright Brass, Satin Brass, Satin Bronze, Oil Rubbed Bronze, Satin Nickel, Bright Chrome, and Satin Chrome, this hinge can match or complement nearly any design aesthetic.
  • ANSI/BHMA Certified: This hinge meets the ANSI/BHMA A156.1 standards, ensuring it meets a high level of performance and durability.
  • Five Knuckle Design: The five knuckle style offers additional support and stability, distributing the door’s weight more effectively and ensuring smoother operation.
  • Non-rising removable pin with button tip and plug

In summary, the Hager BB1168 NRP 4.5" x 4.5" hinge is engineered for demanding applications, offering exceptional durability, operational smoothness, and compliance with safety regulations. Whether for commercial or residential use, it’s a reliable choice for door hardware.

Understanding NRP Hinges

The NRP (Non-Removable Pin) feature is a crucial innovation in the world of door hardware. Here's why it's an essential aspect of secure door installations:

  1. Enhanced Security:
    The primary purpose of the NRP is to prevent unauthorized removal of door hinges from the outside. This is vital for exterior doors or any doors where security is a concern. The non-removable pin ensures that even if someone tries to tamper with the hinges, they can't simply remove the pin and detach the door.
  2. Optimal for Outward Swinging Doors:
    Many commercial and residential doors swing outward, which means the hinge pins are accessible from outside. This makes them vulnerable to intruders. The NRP feature effectively mitigates this risk by securing the hinge pin.
  3. Durability and Peace of Mind:
    With the NRP option, door users can enjoy greater peace of mind. The pin is designed to withstand tampering, offering long-term durability and reliability without compromising on the aesthetics or functionality of the door.

By opting for hinges with an NRP feature, you ensure a higher level of security that safeguards against forced entries through hinge manipulation.

When exploring these options, consider the specific requirements of your project, whether it's for residential or commercial use. Each of these types












General - US Finishes US26D - Satin Chrome or US10 - Satin Bronze or US10B - Oil Rubbed Bronze or USP - Prime Painted
Brand Hager
Hinge Height 4.5" Hi
Hinge Width 4.5" Wi
Hinge Grade/Thickness Heavy Wt .180 to .190
Hinge Type Full Mortise
Hinge Options Ball Bearing, NRP (Non Removable Pin)
Base Material Steel
Hinge Corners Square
